Lower limbs orthopedics

1

Fifth stage

Surgery-Ortho

Lec-6

 .د

  مثنى

28/4/2016

Fractures of the tibia and fibula

  Indirect force: (low energy)

  Twisting: spiral fractures of both bones

  Angulatory: oblique fractures with butterfly segment.

  Direct force:

  Transverse (low energy) or comminuted (high energy) fractures usually with skin

and soft tissue damage.

  Examine for:

  Size of skin and soft tissue damage.

  Distal pulses, sensation, movements.

  Signs of compartment syndrome.

  X-ray must include the knee and ankle.

Management

Objectives:

  To limit soft tissue damage and preserve skin cover.
  To obtain and hold fracture alignment.
  To recognize compartment syndrome.
  To start early weight bearing to promote healing.
  To start joint movement as soon as possible.

Treatment of low energy fractures

  Including closed & Gustilo I & II fractures treated by non-operative methods; MUA for

displaced fractures.

  Full-length cast from upper thigh to metatarsal necks with the knee in slight flexion

and the foot plantigrade.

  Elevate the leg and observe for 2-3 days for compartment syndrome.
  After 4-6 weeks change to below knee functional brace and allow weight bearing and

knee movement.

  Healing is complete in 8 wks in children and in 16 wks in adults.

2

Skeletal fixation

  Locked intramedullary fixation is the method of choice for diaphyseal (shaft) fractures.

  Plate  and  screws  for  fractures  near  bone  ends  (metaphyseal)  and  for  children  with

closed unstable fractures.

Open fractures:

  Antibiotics & anti-tetanus.
  Debridement; thorough wash with normal saline, removal of dead tissues and debris.
  Stabilization preferably using external fixation.
  Soft tissue cover using flaps or grafts.
  Rehabilitation.

Complications

  Vascular  injury;  popliteal  A.  injury  with  proximal  tibial  frctures  requires  angiogram,

exploration and repair.

  Compartment syndrome; open fasciotomy done with minimum delay.

  Infection after open fractures and open surgery.

  Malunion: shortening >1.5cm, angulation > 7degrees or rotation should be corrected.

  Delayed union and non-union; bone grafting and good fixation is required.

  Joint stiffness.

  Complex regional pain syndrome.

Ankle ligament injuries

Range from:

  Stretching of the ligament.

  Partial tear: healing restores full function.

  Complete tear: joint instability.

Usually  involves  lateral  ankle  ligaments  (ant.  Talofibular  lig.,  talocalcaneal  lig.,  and  post.
Talofibular lig.).

Medial calcaneal lig. (deltoid lig.) can result from abduction or eversion injury.

Clinical features:

Bruising,  swelling,  tenderness  (usually  distal  and  anterior  to  lat.  Maleolus  in  anterior
talofebular lig. Injury).

3

Treatment

  Partial tears: elastic bandage and gentle active exercise.

  Complete tears: cast  immobilization  from  below  knee  to  toes  for  6  wks  then

physiotherapy.

  If this regime fails; operative repair is done.

Complications:

  Recurrent sprains.
  Recurrent giving way or instability.

FRACTURES AND FRACTURE- DISLOCATIONS OF THE ANKLE

Injury may involve one or more of the following structures:

  Lateral maleolus.

  Medial maleolus.

  Tibiofibular syndesmosis.

  Lateral collateral ligament (ant. And posterior talofebular lig., and calcaneofibular lig.).

  Medial collateral (deltoid) lig.

  Tibial articular surface (tibial plafond).

  Position of the talus.

Clinical features

  History of severe inj. In young athletes or simple inj. In elderly osteoporotic.

  Ankle twist.

  Intense pain, swelling, inability to stand and deformity.

  Look for points of tenderness espetially over medial or lateral malleolus.

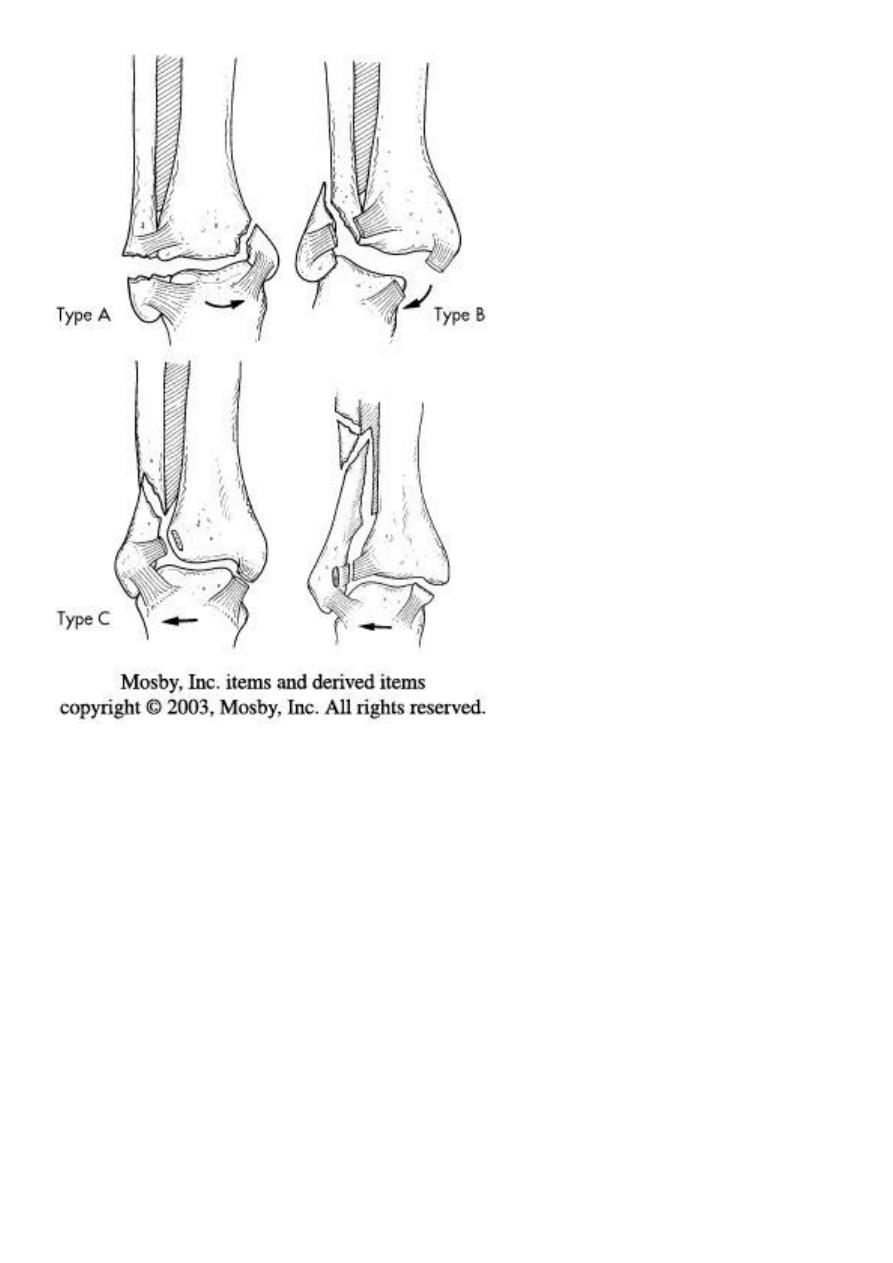

Danis-Weber classification (based on the level of fibular fracture)

  Type A: a fibular fracture below syndesmosis and oblique fracture medial maleolus.

  Type B: fibular fracture at syndesmosis + disruption of ant. Fibers of tibiofibular lig. +

fracture of medial malleolus or rupture of deltiod lig.

  Type  C:  fibular  fracture  above  syndesmosis+  tibiofibular  lig.  (syndesmosis)  is  torn.

Unstable fracture-subluxation of ankle mortise.

4

Principals of treatment

  Treatment within hours or after several days until swelling subside by elevation and

splintage.

  Anatomical reduction is a must to avoid later osteoarthritis.

  Fibular  fracture  below  tibiofibular  lig.  Ankle  jt.  is  stable;  reduce  the  fracture  and

immobilize in a cast.

  Fibular  fracture  above  tibiofibular  lig.  Ankle  jt.  is  unstable;  usually  need  internal

fixation.

5

Postoperative management

Below knee cast for 4 wks in low-level injuries, and 6-8 wks in fractures treated by surgery.

Complictions

  Joint stiffness and prolonged swelling. Treat by compression stocking and elevation.

  Complex regional pain syndrome.

  Osteoarthritis

Comminuted fractures of the tibial plafond (Pilon fracture)

  Severe axial compression of the ankle (FFH).

  Shattering of ankle joint surface.

  Swelling and blistering; treated by elevation and calcaneal traction.

  Secondary Osteoarthritis is common.

Fractures of Talus

  Rare and usually due to considerable violence- FFH, car accidents,…

  May involve the body, neck, head or dislocation of the talus.

Clinical features

  Pain, swelling, deformity.

  Skin tented or split.

  X-ray: difficult to diagnose. May need to repeat several days later to see the fracture.

  C-T in difficult cases.

Treatment

  Trivial displacement: Below knee plaster with knee plantigrade for 6-8 wks

  Displaced fractures or fracture dilocations: urgent reduction by closed manipulation; if

fails, ORIF

Complications

  Non-union.

  Avascular necrosis of body after fracture of neck.

  Oseoarthritis.

6

Calcaneal fractures

  Usually after FFH.

  Associated injuries: spine, pelvis, hip or base of skull.

  Extra-articular fractures: need closed treatment. Have good prognosis.

  Intra-articular fractures: involve superior articular surface. May be comminuted.

Special features

  Foot painful, swollen, bruised and the heel look broad. Movement is painful.

  Signs of compartment syndrome: intense pain and diminished sensation.

  Necessary to X-ray the knees, spine, and pelvis.

Treatment

  Admit to hospital, elevate the leg and apply ice-packs until swelling subside.

  Undisplaced fractures: closed treatment.

  Displaced fractures: ORIF with screws.

Complications

  Broadening of the heel

  Talocalcaneal stiffness and OA

Metatarsal fractures

Mechanism of injury:

  Direct blow.

  Twisting.

  Repetitive stress.

Treatment:

  Walking plaster for 3 wks.

  Displaced fractures; Kirschner wire fixation.

7

Stress injury (march fracture)

  Young adult (often recruit or a nurse)

  Painful foot after overuse.

  Tender lump in shaft of metatarsal (usually 2

nd

).

  X-ray: at first normal but later show hairline fracture and callus.

  Radioisotope shows early increased activity.

Avulsion of base of fifth metatarsal

  Result from forefoot inversion injury.

  Base of 5

th

 MT avulsed by peroneus brevis tendon.

  Treatment: Below knee walking cast for 3wks.
