Complications ofFractures
Dr. Wahby GhalibCABMS, FJMC, MRCS
Wahby Ghalib
2Wahby Ghalib
3Wahby Ghalib
4Visceral injury
Rib # pneumothorax
Pelvic # bladder or urethral injury
Wahby Ghalib5
Vascular injury
Sites : knee elbow femur humerus
Types : compression
tear
intimal flap thrombosis
spasm
Wahby Ghalib
6
Wahby Ghalib
7Dx : angiography
Tx : reductionrepair ± vein graft
endartectomyWahby Ghalib
8
Nerve injury
Sites : humerus elbow knee
Closed # : 90% recovery in 4 mo
Exploration :no recovery (clinical & EMG)
open #
after manipulationWahby Ghalib

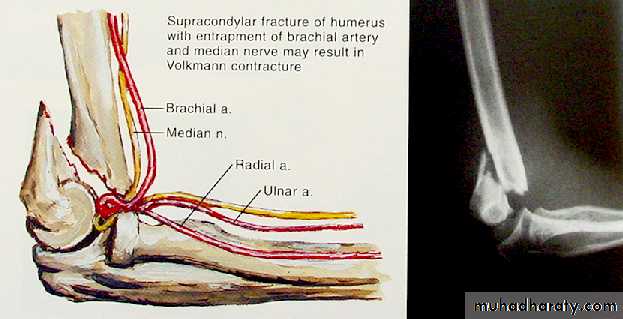

9Compartment syndrome
D : ↑ pressure in an osseofascial
compartment capillary occlusion
Nr. : 0-12 mmHg
Compartment :
>30or difference from DBP<30
Follows : # surgery plaster
Wahby Ghalib
10After 12 hr muscle & nerve
necrosis Volkmann`s contracture
CF : pallor pain paraesthesia
paralysis pulselessnesspainful passive stretching
Dx : pressure measurementTx : fasciotomy
Wahby Ghalib
11Haemarthrosis
Blood accumulates inside the joint
Aspirate
Wahby Ghalib12
Infection
Open # or IF
Complications :
delayed unionnonunion
chronic OM
Wahby Ghalib
13Wahby Ghalib
14
Problems of union
Delayed union: no clinical & radiological evidence of union by the assumed time.Usually by 3-4 m.
Nonunion : …..by double the union time.Usually by 6
Wahby Ghalib15
Causes
Biological : severe s.t. damage
inadequate bld supply
s.t. interposition
Biomechanical : imperfect or rigid
fixationInfection
Wahby Ghalib16
Tx
IF + bone graft
Wahby Ghalib
17Malunion
Healing in an unacceptable position
Angulation > 10-15°
Shortening in L.L. > 2 cmWahby Ghalib

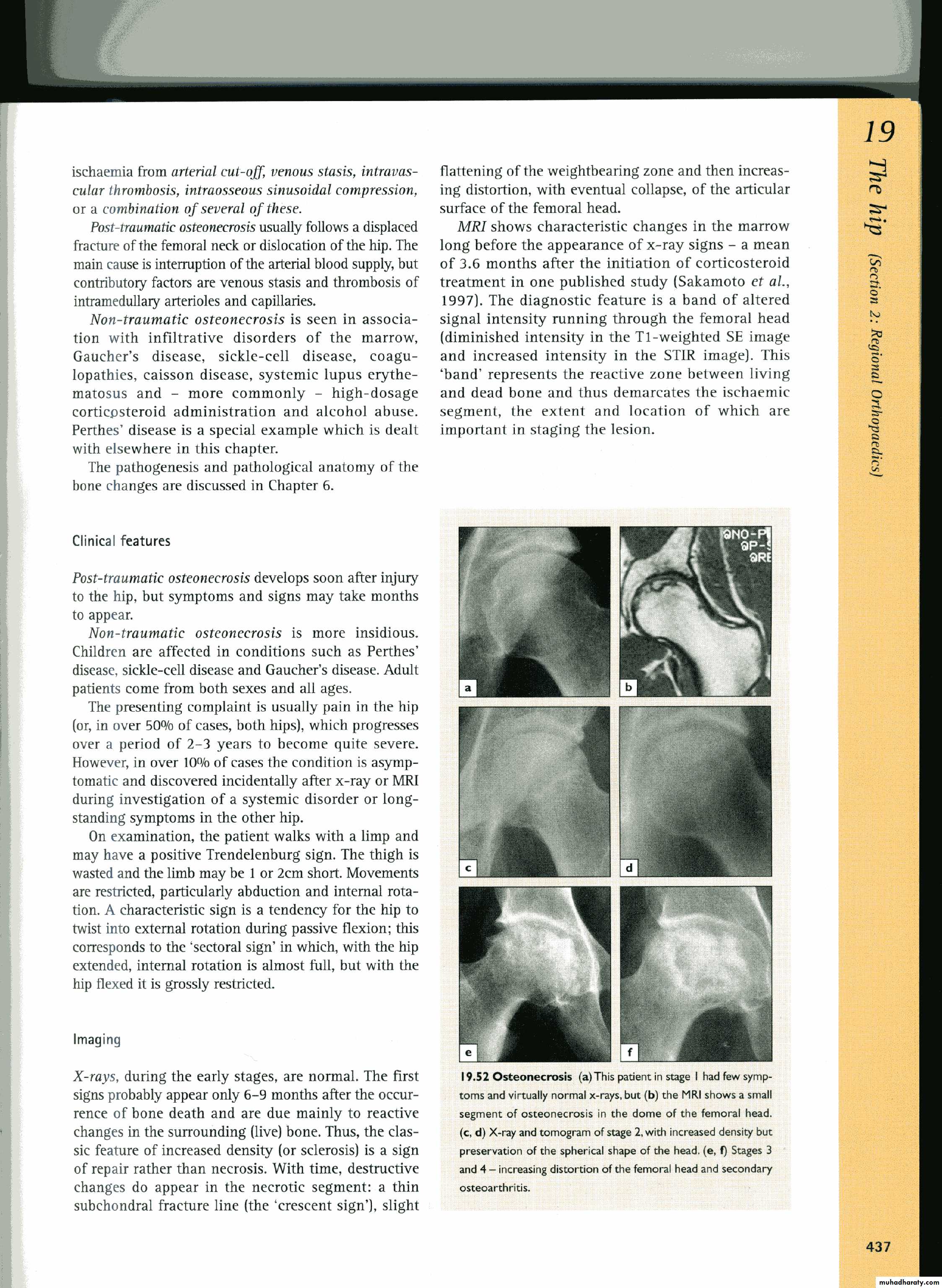

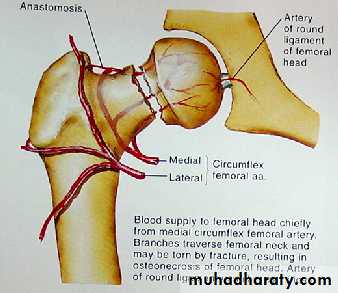

18AVN
Common #s : FN scaphoid talus
XR : > 8w
↑ densitycollapse
OA
Tx : arthroplasty
arthrodesis
Wahby Ghalib
19
Wahby Ghalib
20
Wahby Ghalib

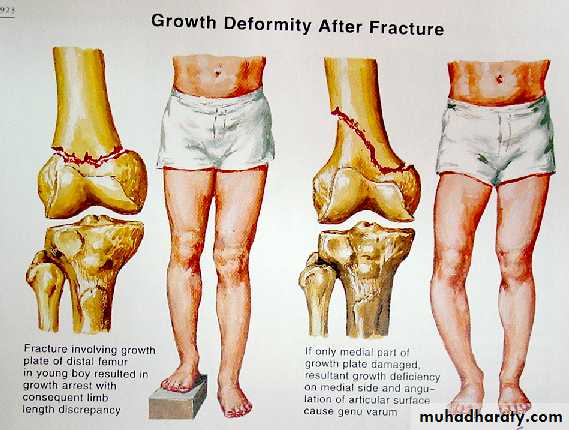

21Growth disturbance
Wahby Ghalib
22Myositis ossificans
= heterotopic ossification
Common sites : elbow & hip
CF : pain & LOMRx : avoid vigorous exercise
excision after several monthsindomethacin & radiation ( prevention)
Wahby Ghalib
23Wahby Ghalib
24Tendon lesions
TP tendinitis in MM #
EPL tendon rupture in DR #
Wahby Ghalib
25Nerve compression
Ulnar N. in cubitus valgus
Median nerve in DR #Wahby Ghalib
26Muscle contracture
DDx : claw-hand deformity
Wahby Ghalib27
Joint complications
Instability
Stiffness : ( fracture disease)
OA : damage to articular cartilage
malunited intra-articular #Wahby Ghalib
28Reflex sympathetic dystrophy
= complex regional pain s.
= algodystrophy= Sudeck atrophy
Wahby Ghalib29
Reflex sympathetic dystrophy
May be : ↑ sympathetic activity
Common sites : hand & foot
May follow trivial trauma
CF : pain swelling redness stiffness
XR : patchy osteopeniaWahby Ghalib
30Tx
PT
Antiinflammatory drugs
Sympatholytic (guanithidine)Sympathectomy
Wahby Ghalib31
Wahby Ghalib
32Shock
Hypovolaemic shock :
FS # 1-2 L
pelvic # 1-3L
Spinal shock : due to spinal cord inj.
flaccid paralysis &
peripheral vasodilatation
Neurogenic shock : spinal cord inj.
proximal to T6Wahby Ghalib
33Crush syndrome
Crushed limb deprived of blood tissue death accum. of toxic metabolites
Re-perfusion local swelling
dissemination of free
radicals & myoglobin
Hyperkalaemia hypocalcaemia acidosis
Cardiac arrestRenal failure
Wahby Ghalib
34

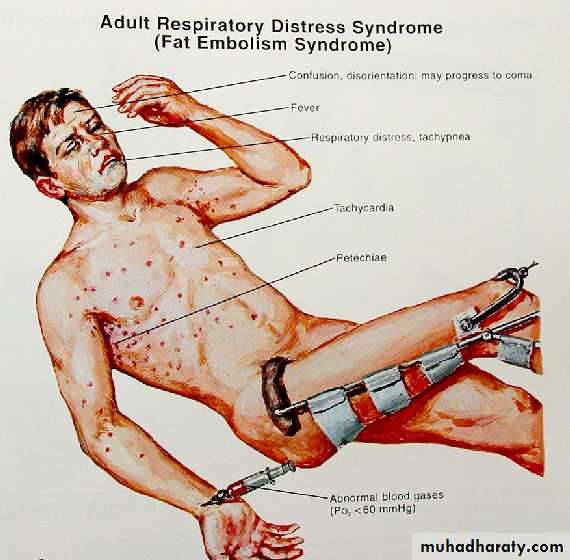

Fat embolism
Seen 1-3d after trauma
CF : cerebral pulmonary cutaneous
Mortality : 15%Prevention : early # stabilization
Rx : mechanical ventilationWahby Ghalib
35
Wahby Ghalib
36ARDS
Pulmonary oedema of non-cardiac
cause
Mortality rate 50%
Prevention : early # stabilization
Rx : mechanical ventilationObjectives :
Understanding the systemic approach to the complications of fractures.Building up of a rational way to deal with complications based on clinical priorities.
Understanding the special characters of each fracture and the possible respective complications.Wahby Ghalib
37
Objectives :
Training the students about the prevention and the early detection of complications.Training the students on how to deal with complications the clarification of the various medical and the surgical options and stressing the importance of collaboration with the physeotherapist.
Wahby Ghalib
38Wahby Ghalib
39
