Osteomyelitis

stage

Dr.Kalid Ali Zayer

Osteomyelitis

Is an inflammation of the bone caused by an infecting organism.

Classification:

▪ Depending on the duration of symptoms:

1.  Acute pyogenic: are characterized by the formation of pus.
2.  Subacute.
3.  Chronic:

a. Chronic pyogenic infection: may follow on unresolved

acute infection.

b. Chronic non-pyogenic infection: may result from invasion

by organisms that produce a cellular reaction leading to
granulomatous infection. Typically seen in tuberculosis.

▪ Depending on the mechanism of infection:

Exogenous or haematogenous; less often contiguous.

General aspects of bone infection

Micro-organisms may reach the musculoskeletal tissues by:

1. Direct introduction through the skin (a pinprick, an injection, a

stab wound, a laceration, an open fracture or an operation).

2. Direct spread from a contiguous focus of infection.
3. Indirect spread via the blood stream from a distant site such as the

nose or mouth, the respiratory tract, the bowel or the genitourinary
tract.

Acute Haematogenous Osteomyelitis

Aetiology

▪ It is the most common type of bone infection. It is mainly a disease

of children. When adults are affected it is usually because their
resistance is lowered.

▪ The organisms reach the bone through the blood stream.

▪ Trauma may determine the site of infection, possibly by causing a

small haematoma or fluid collection in a bone, in patients with
concurrent bacteraemia.

The causal organism:

▪ Staphylococcus aureus is the most common microorganism in both

adults and children (found in over 70% of cases), less often
streptococcus (Streptococcus pyogenes).

▪ In children 1-4 years of age, Haemophilus influenzae and Kingella

kingae used to be a fairly common pathogen for osteomyelitis and
septic arthritis.

▪ Patients with sickle-cell disease are prone to infection by

Salmonella typhi.

▪ Unusual organisms like Escherichia coli, Pseudomonas

aeruginosa, Proteus mirabilis and the anaerobic Bacteroides fragilis
are more likely to be found in heroin addicts and as opportunistic
pathogens in patients with compromised immune defense
mechanisms.

Pathogenesis

▪ In children, the infection usually starts in the vascular metaphysis

of a long bone, most often in the proximal tibia or in the distal or
proximal ends of the femur.

▪ In adults, haematogenous infection mostly affecting the vertebrae.

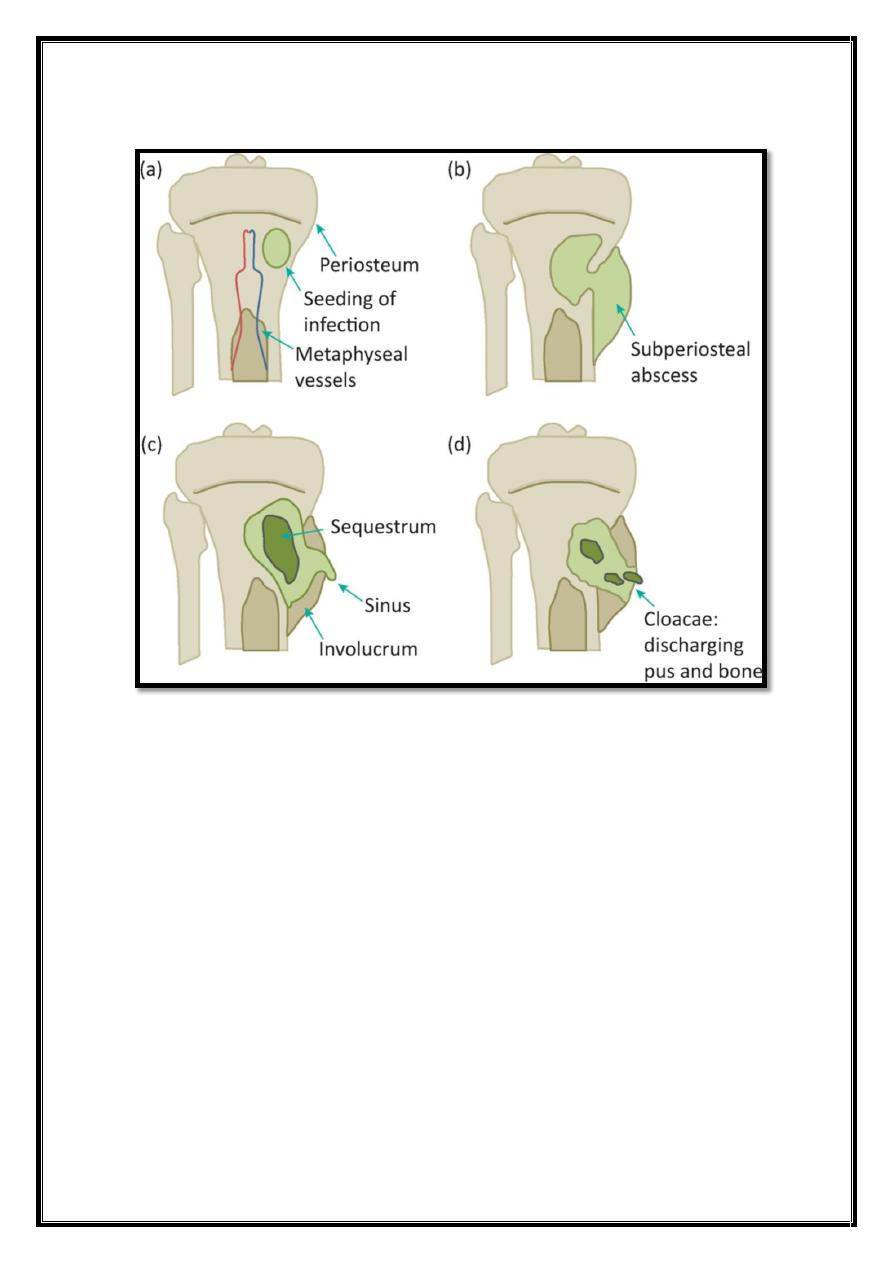

Five stages (The ‘classical’ picture is seen in children between 2 and 6
years):

1.  Acute inflammation: ischemia and intense pain.
2.  Suppuration: 2nd or 3rd day, pus. (subperiosteal abscess).
3.  Necrosis: a week, bone death, and Pieces of dead bone may

separate (Sequestra) varying in size.

4. New bone formation: by the end of 2nd week, from stripped

periosteum (involucrum), enclosing the sequestrum and infected
tissue. If the infection persists, pus and tiny sequestrae may
discharge through perforations (cloacae) in the involucrum and
track by sinus(es) to the skin surface.

5. Resolution and healing or intractable chronicity.

Clinical features

▪ Children (4-6) year old: severe pain, malaise and a fever. The

child looks ill and feverish; the pulse rate over 100. The child
refuses to move the limb (‘pseudoparalysis’), or to allow it to be
handled or even touched. There is acute tenderness near one of the
larger joints.

▪ Infants and children under a year old: the constitutional

symptoms are mild; the baby drowsy but irritable.

▪ Adults: The commonest site is the thoracolumbar spine. There

may be a history of some urological procedure followed by a mild
fever and backache. Local tenderness is not very marked.

▪ Very elderly: and in those with immune deficiency, systemic

features are mild and the diagnosis is easily missed.

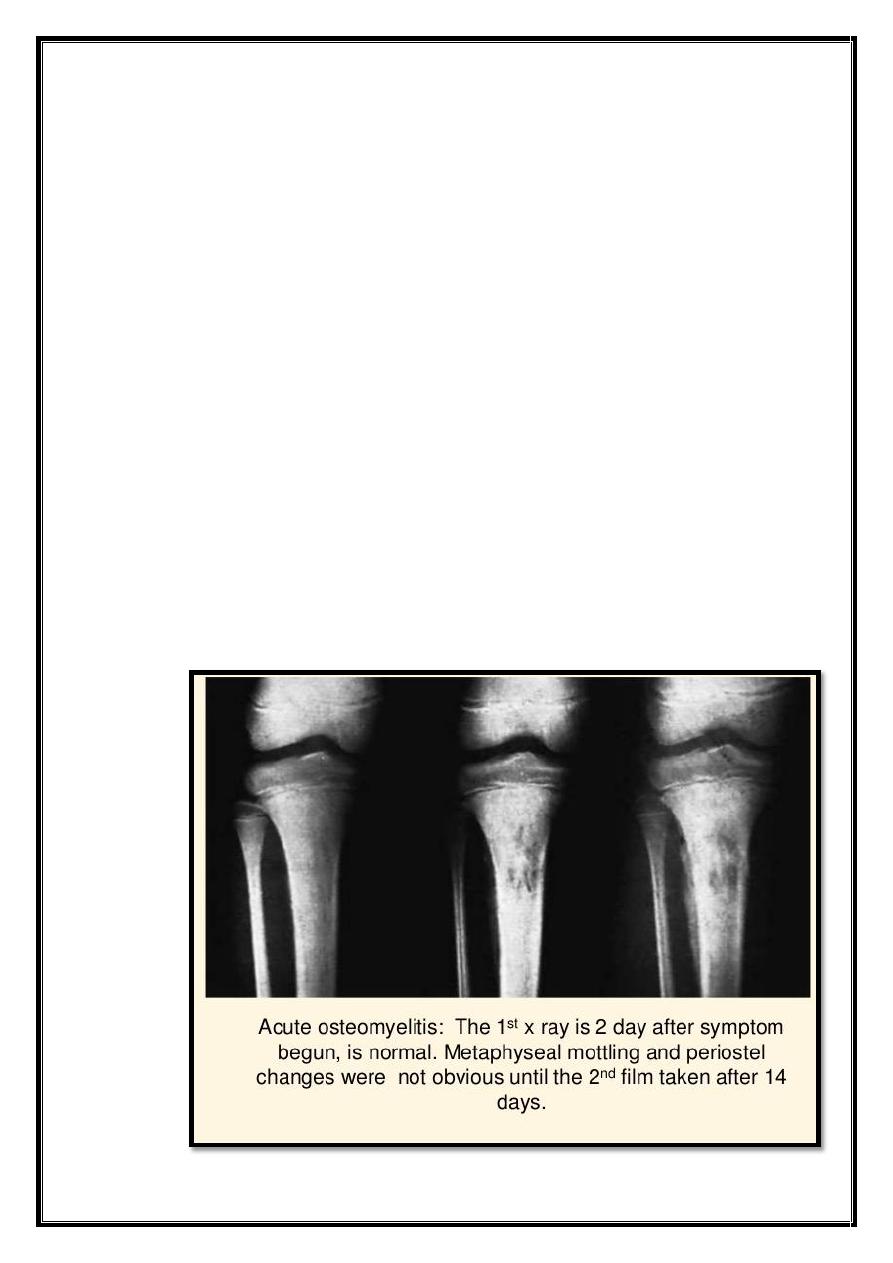

Diagnostic imaging

1. Plain X-ray: obvious by the end of 2nd week: diffuse rarefaction,

then periosteal new bone formation, then squestrum, but treatment
should not be delayed until x-ray changes appear.

2. Ultrasonography: may detect a subperiosteal collection of fluid in

the early stages of osteomyelitis.

3. Bone Scan: is a highly sensitive investigation, even in the very

early stages.

4. MRI: It is extremely sensitive, even in the early phase of bone

infection.

Laboratory investigations

▪ Aspiration of pus or fluid from the metaphyseal subperiosteum for

microbiological examination is the most certain way to confirm the
clinical diagnosis.

▪ Blood cultures are positive in less than half of the cases.
▪ The C-reactive protein (CRP) values are elevated within 12–24

hours and ESR within 24–48 hours after the onset of symptoms.
WBC count rises.

▪ Antistaphylococcal antibody titers may be raised.

Treatment

If osteomyelitis is suspected on clinical grounds, blood and fluid samples
should be taken for laboratory investigations and then treatment started
immediately without waiting for final confirmation of the diagnosis.
Four aspects:

1.  Supportive treatment for pain and dehydration.
2.  Splintage of the affected part.
3.  Appropriate antimicrobial therapy: parentral: start empirical

treatment as combination of flucloxacillin and fusidic acid or third
generation cephalosporin like cefotaxime. Patients at risk of
meticillin-resistant Staphylococcus aureus (MRSA) should be
treated with intravenous vancomycin (or similar antibiotic)
together with a third-generation cephalosporin.

4. Surgical drainage: indicated if the patient presented late or

symptoms do not improve within 36 hours or there is pus.

Complications:

1.  Septicemia or pyaemia.
2.  Suppurative arthritis.
3.  Epiphyseal damage and altered bone growth.
4.  Metastatic infection: may affects other bones, joints, brain, and

lung.

5. Chronic osteomyelitis.

Subacute Haematogenous Osteomyelitis

▪ This condition is no longer rare, and in some countries the

incidence is equal to that of acute osteomyelitis.

▪ Its relative mildness is probably due to the organism being less

virulent or the patient more resistant (or both).

▪ It occurs in the metaphysis of long bones of the lower extremities

of young adults, the distal femur and the proximal and distal tibia
are the favorite sites.

▪ The organism is almost always Staphylococcus aureus.

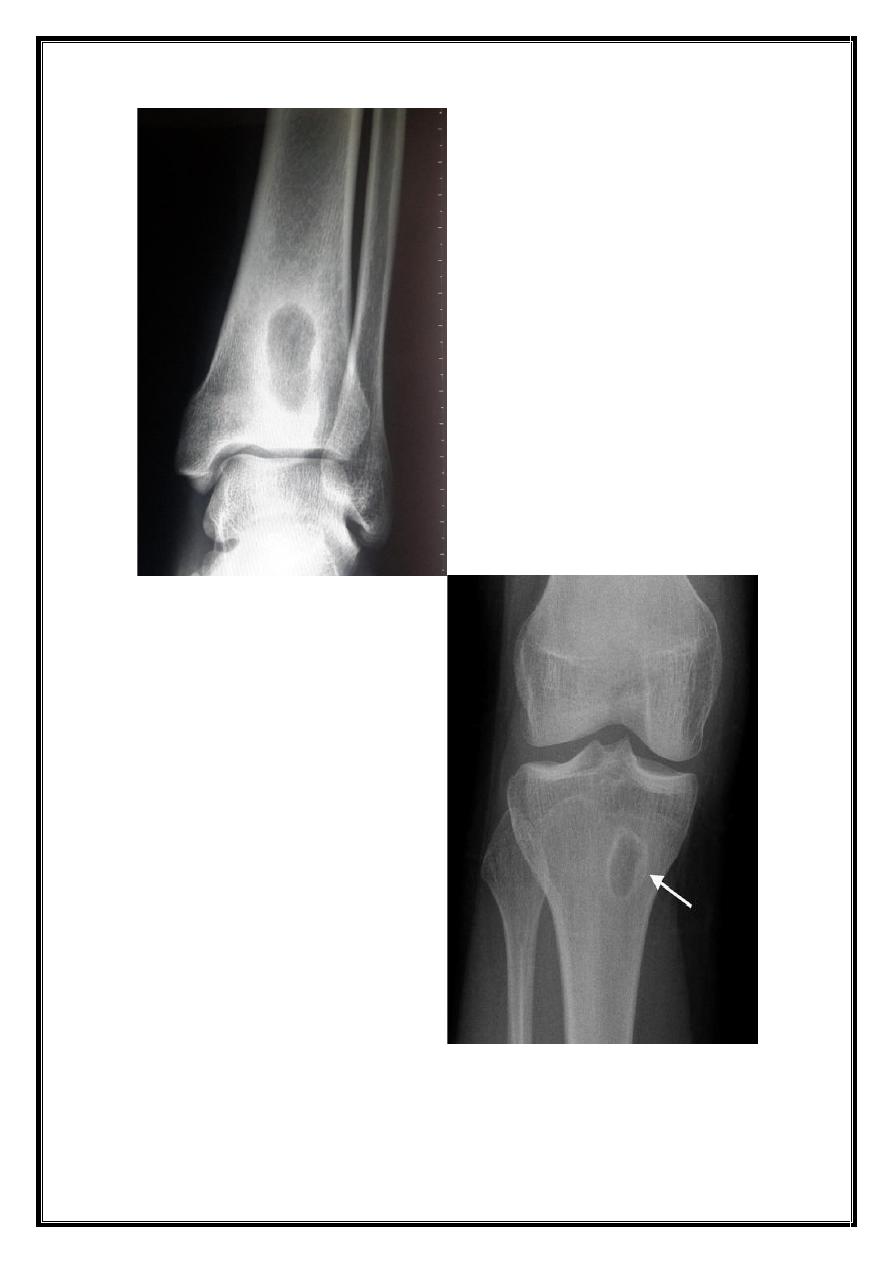

Brodie's abscess

▪ There is a well defined cavity in cancellous bone containing

seropurulent fluid, rarely pus. Pain is the predominant symptom.

▪ X-ray: round or oval radiolucent ‘cavity’ 1–2 cm in diameter

surrounded by zone of sclerosis, the rest of bone is normal.
Treatment is surgery.

Chronic osteomyelitis

• Chronic osteomyelitis is nearly always a sequel to acute

osteomyelitis.

• Occasionally, is chronic from the beginning.
• Nowadays, the commonest of all predisposing factors is local

trauma, such as an open fracture or a prolonged bone operation,
especially if this involves the use of a foreign implant.

Pathogenesis:

•  Staphylococcus is the usual causative organism.
•  Streptococci, pneumococci, typhoid bacilli, or others.
•  The infection is often mixed.
•  In the presence of foreign implants, Staphylococcus epidermidis is

the commonest of all.

Pathology:

The hallmark is infected dead bone within a compromised soft tissue
envelope. Bone is destroyed and cavities containing pus and pieces of
dead bone (Squestra) surrounded by thick sclerotic bone (Involucrum).
Perforation(s) (Cloacae) in the involucrum tract to the skin (sinus).
Systemic antibiotics essentially ineffective.

Why Chronic osteomyelitis?

• Scar formation.

•  Presence of dead and dying bone around the focus of infection.
•  Poor penetration of new blood vessels.
•  Presence of non-collapsing cavities in which microbes can thrive.
•  Bacteria covered in a protein–polysaccharide slime (glycocalyx)

that protects them from both the host defenses and antibiotics
especially when there is metal.

• There is also evidence that bacteria can survive inside osteoblasts

and osteocytes and be released when the cells die.

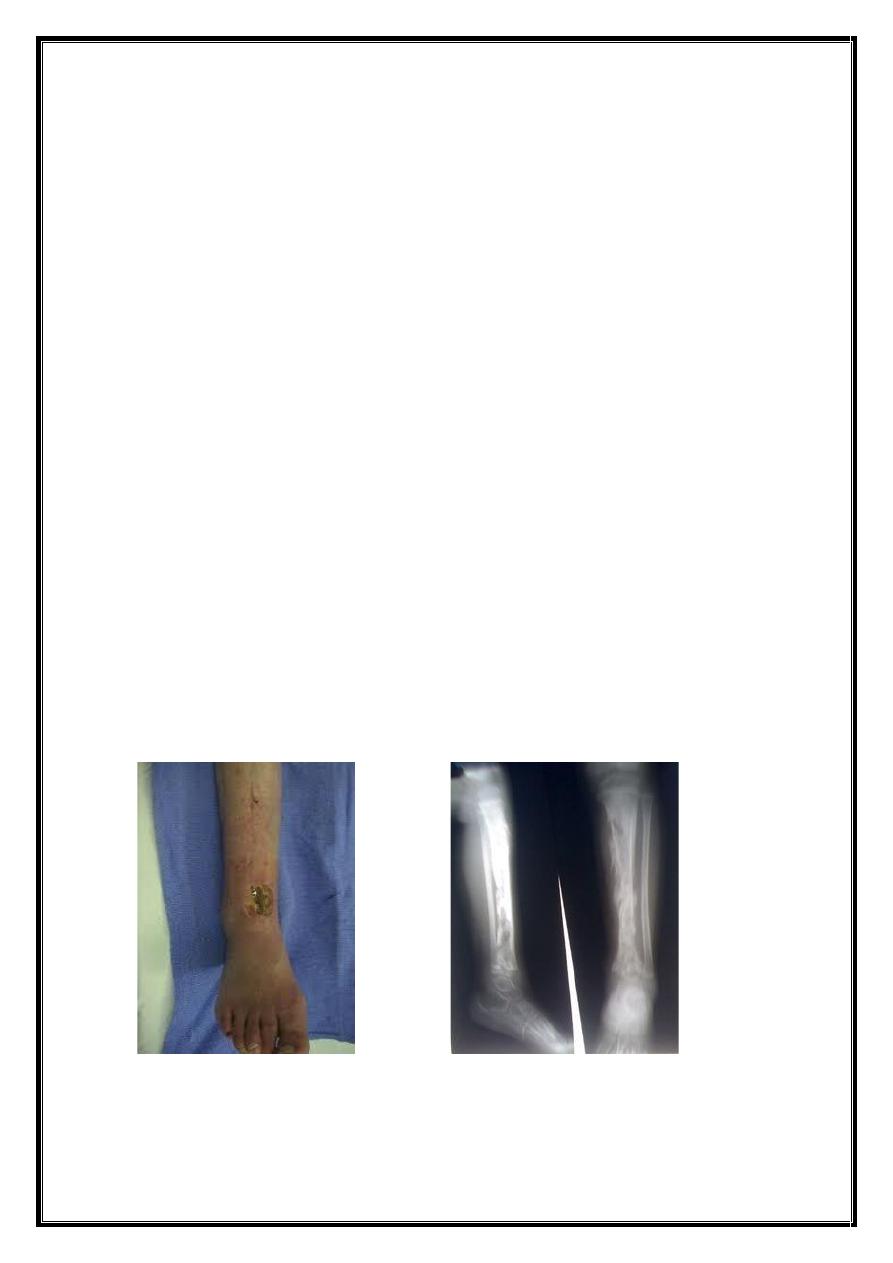

Clinical features:

• Acute flares: pain, pyrexia, redness and tenderness have recurred.
• Discharging sinus and excoriation of the surrounding skin. In

longstanding• cases the tissues are thickened and often puckered or
folded inwards where a scar or sinus adheres to the underlying
bone. OR

• Pathological fracture.

Imaging:

• Plain x-ray: the classical appearance is called honeycombed

appearance: bone resorption either as a patchy loss of density or as
frank excavation around an implant with thickening and sclerosis
of the surrounding bone.

• CT & MRI: show the extent of bone destruction and hidden

abscesses and sequestra.

• Sinogram: may help to localize the site of infection

Treatment:

• Despite advances in antibiotic therapy, chronic osteomyelitis

seldom eradicated by antibiotics alone. Yet bactericidal drugs are
important (a) to suppress the infection and prevent its spread to
healthy bone and (b) to control acute flares.

•   Acute flares often subside with rest and antibiotics.
•  Abscess must be drained.
•  Persistent discharging sinuses need extensive surgery. (Bone graft,

Muscle flap).

• Pathological fracture need fixation.
• Amputation: dangerous or damn nuisance limb.

Complications:

1.  Pathological fracture.
2.   Bone deformity.
3.   Squemous cell carcinoma in chronic skin sinus.
4.  The limb some time become chronically painful and useless

(damn nuisance limb).

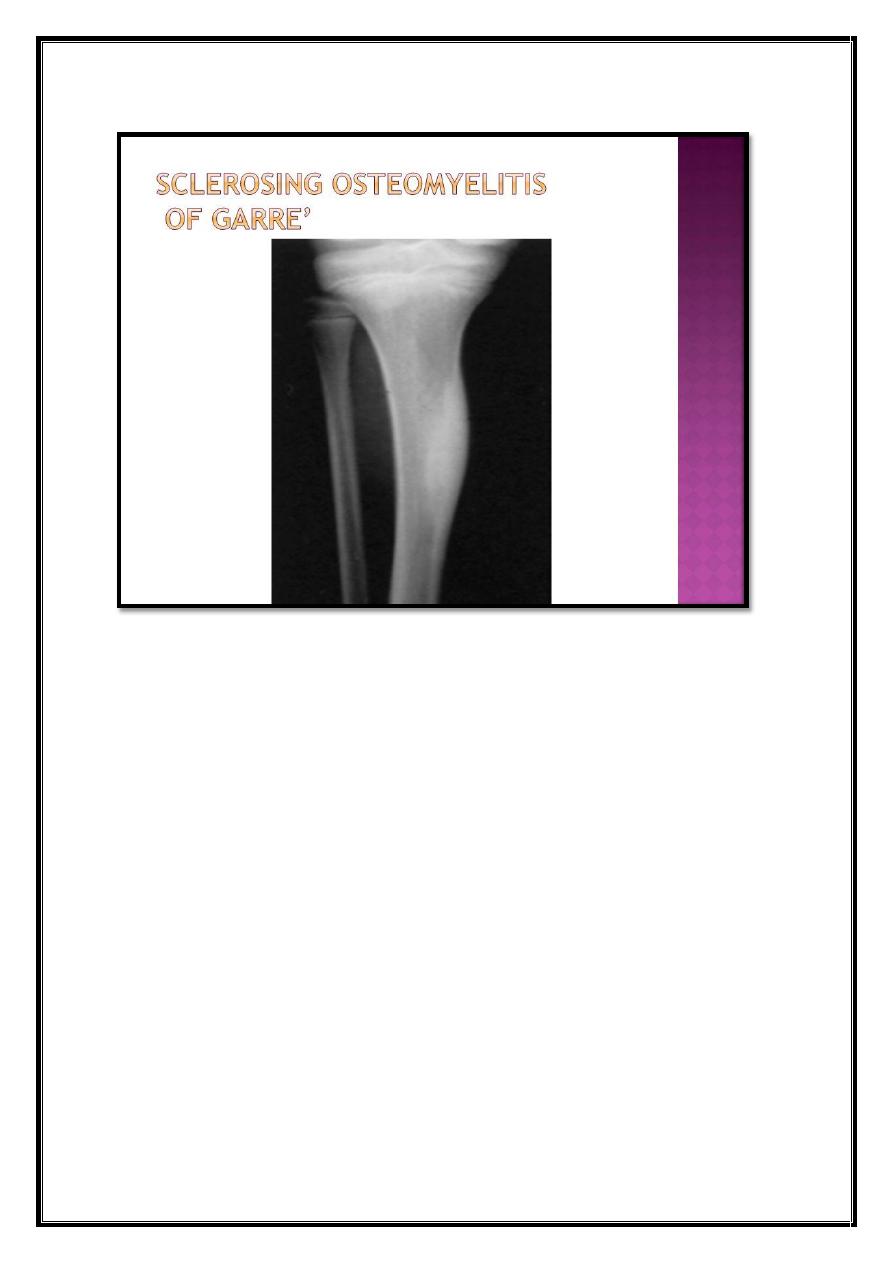

Chronic osteomyelitis of Garre:

• Is nonsuppurative osteomyelitis which is characterized by marked

sclerosis and cortical thickening. but‼ there is no abscess, only a
diffuse enlargement of the bone at the affected site – usually the
diaphysis of one of the tubular bones or the mandible.

• Insidious onset, moderate, intermittent pain of long duration.
• X-rays; increased bone density and cortical thickening; in some

cases the marrow cavity is completely obliterated. There is no
abscess cavity.

• Treatment by surgery.
