Mineral trioxide aggregate (MTA)

is a biomaterial that has
been investigated for endodontic
applications since the early 1990s
By Dr. Balsam M. Mirdan

approval for endodontic use by the U.S. Food and Drug Administration in 1998

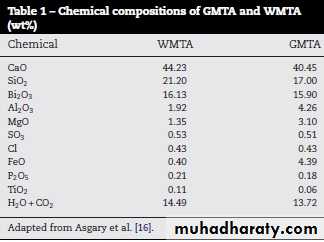

CHEMICALLY

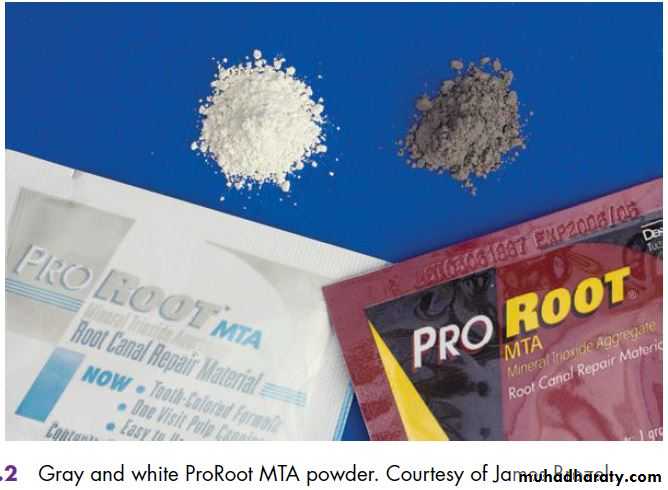

mixture of a refined Portland cement
bismuth oxide
contain trace amounts of SiO2, CaO, MgO, FeO, K2SO4, Al2O3 and Na2SO4

MTA is an endodontic cement that is extremely biocompatible, capable of stimulating healing and
osteogenesis, and is hydrophilic.

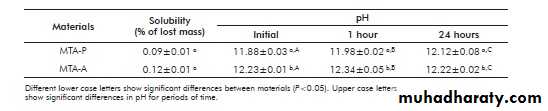

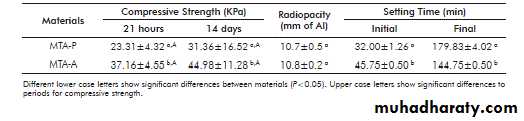

PHYSICAL PREOPERTIES

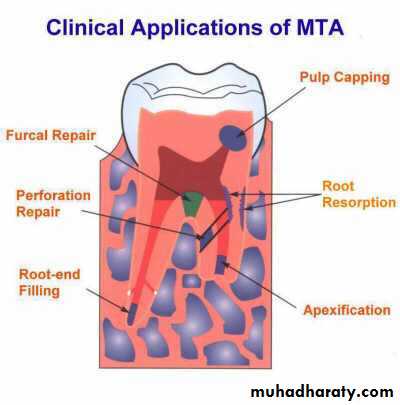

Indications

MTA has been used in both surgical and non-surgical applications including;

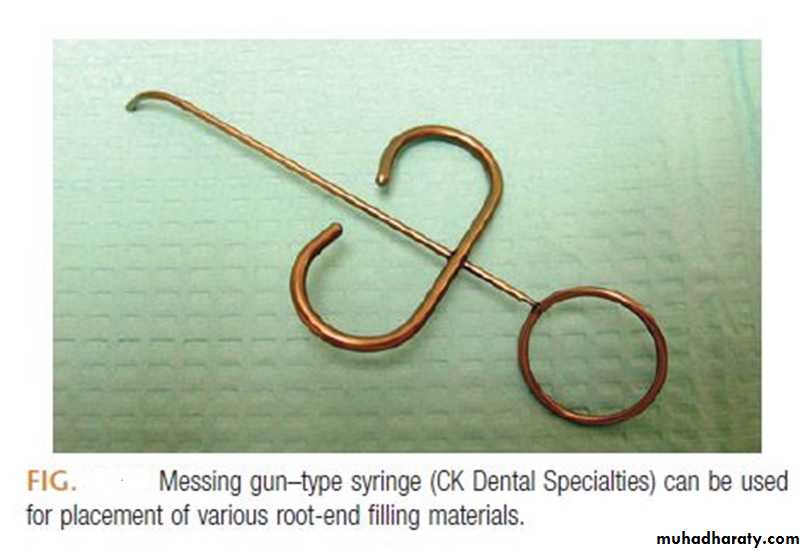

1. Root end fillings
2. Direct pulp capping
3. Perforation repairs in roots or furcation
4. Apexification, etc.
It’s also useful for the troublesome problems of strip perforations and perforating resorptive defects.




MTA may be ideal material for use against bone, because it’s the only material that consistently allows for the overgrowth of cementum and formation of bone and may facilitate the regeneration of periodontal ligament

Contraindications

The material is not recommended for obturation of primary teeth that are expected to exfoliate since the material is slowly absorbed, if at all.
Disadvantage
________??????????

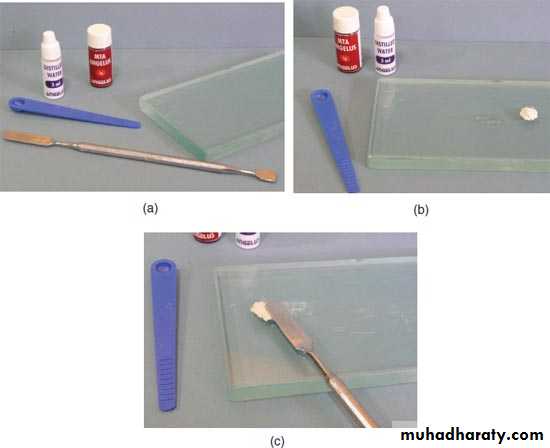

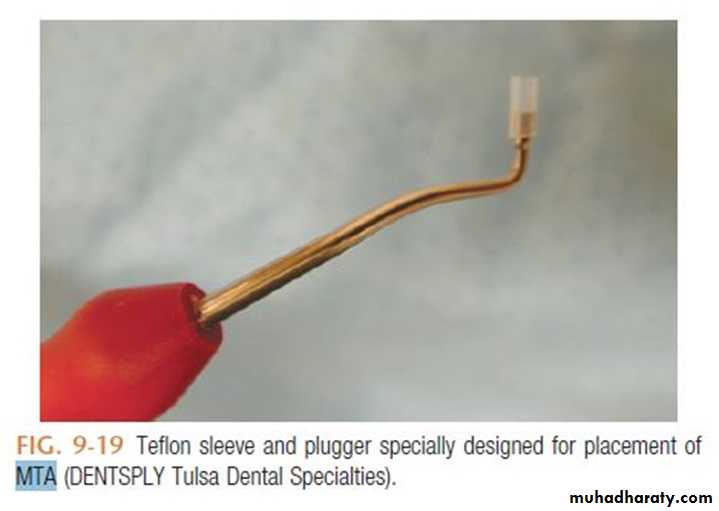

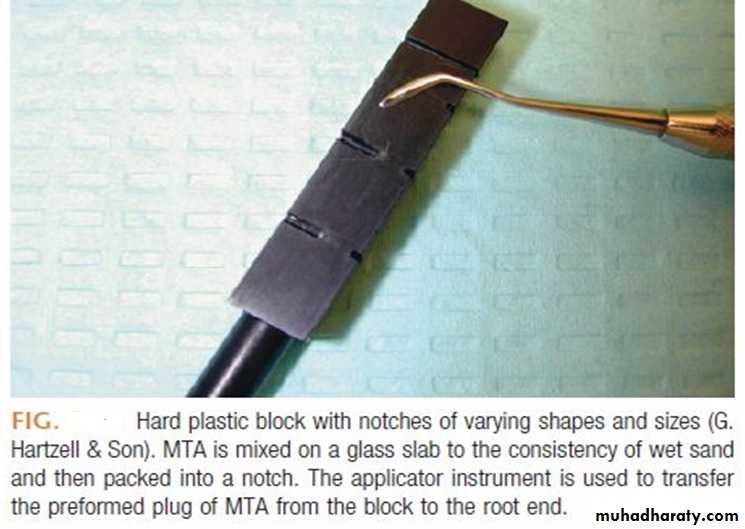

Mixing MTA

• Prepared immediately before use. Kept always in closed containers or free from moisture.
• Powder: Water = 3: 1.
• Glass or paper slab used for mixing with – plastic / metal spatula.
•

MECHANISM OF ACTION:

From the time that MTA is placed in direct contact with human tissues, it appears that the material does the following3
• Creates an antibacterial environment by its alkaline pH
• Modulâtes cytokine production
• Encourages differentiation and migration of hard tissue-producing cells and
• Forms HA (or carbonated apatite) on the MTA surface and provides a biologic seal.

INTRODUCTION TO LASERS

BY
Dr. Balsam M. Mirdan

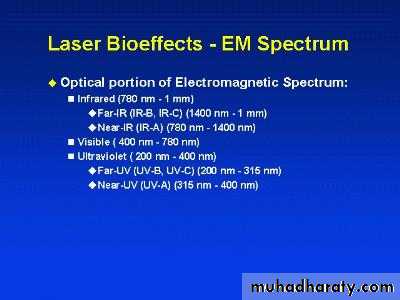

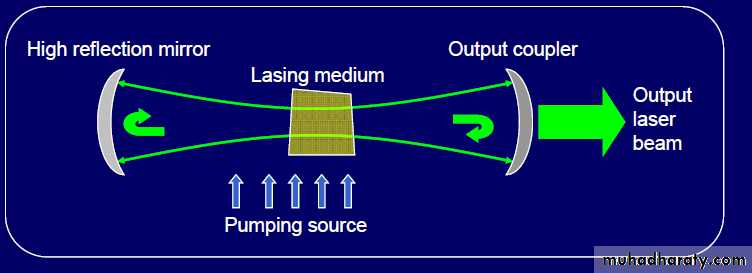

Lasers are devices that generate or amplify coherent radiation at frequencies in the infrared, visible, or ultraviolet regions of the electromagnetic spectrum.

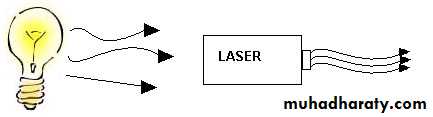

Incandescent vs. Laser Light

Many wavelengths

Multidirectional
Incoherent
Monochromatic
Directional
Coherent

In short

There are factors affects the inter action between laser used and tissues these are:
Tissue side;
• Absorption coefficient, scattering coefficient and the refractive index of the tissue to the incident wavelength.
2. Temperature of the tissue.
3. the chemical contained in the tissue.

Laser side;

• Wavelength
• Intensity
• Mode of operation
• Pulse duration
• Repetition rate
• Irradiated area

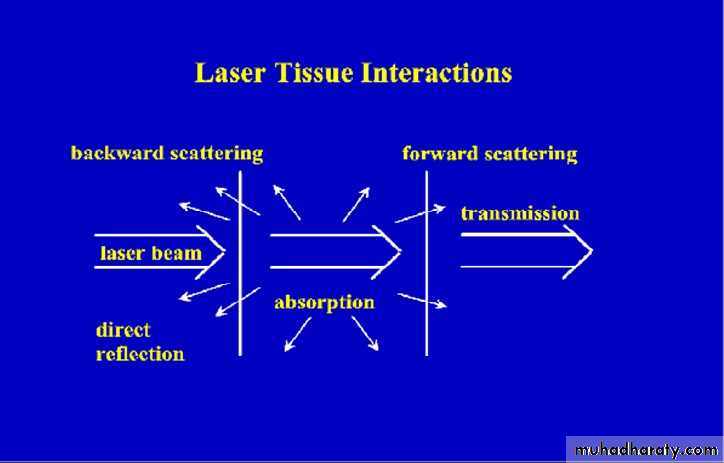

INCIDENT

LIGHT

REFLECTION

TRANSMISSION
ABSORPTION (A)
SCATTERING(S)
Laser tissue interaction

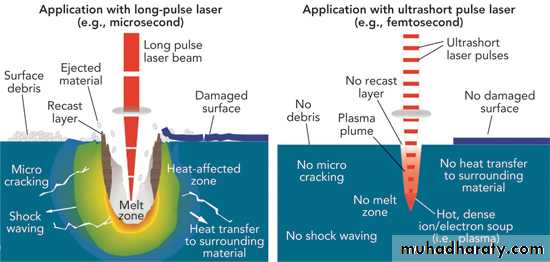

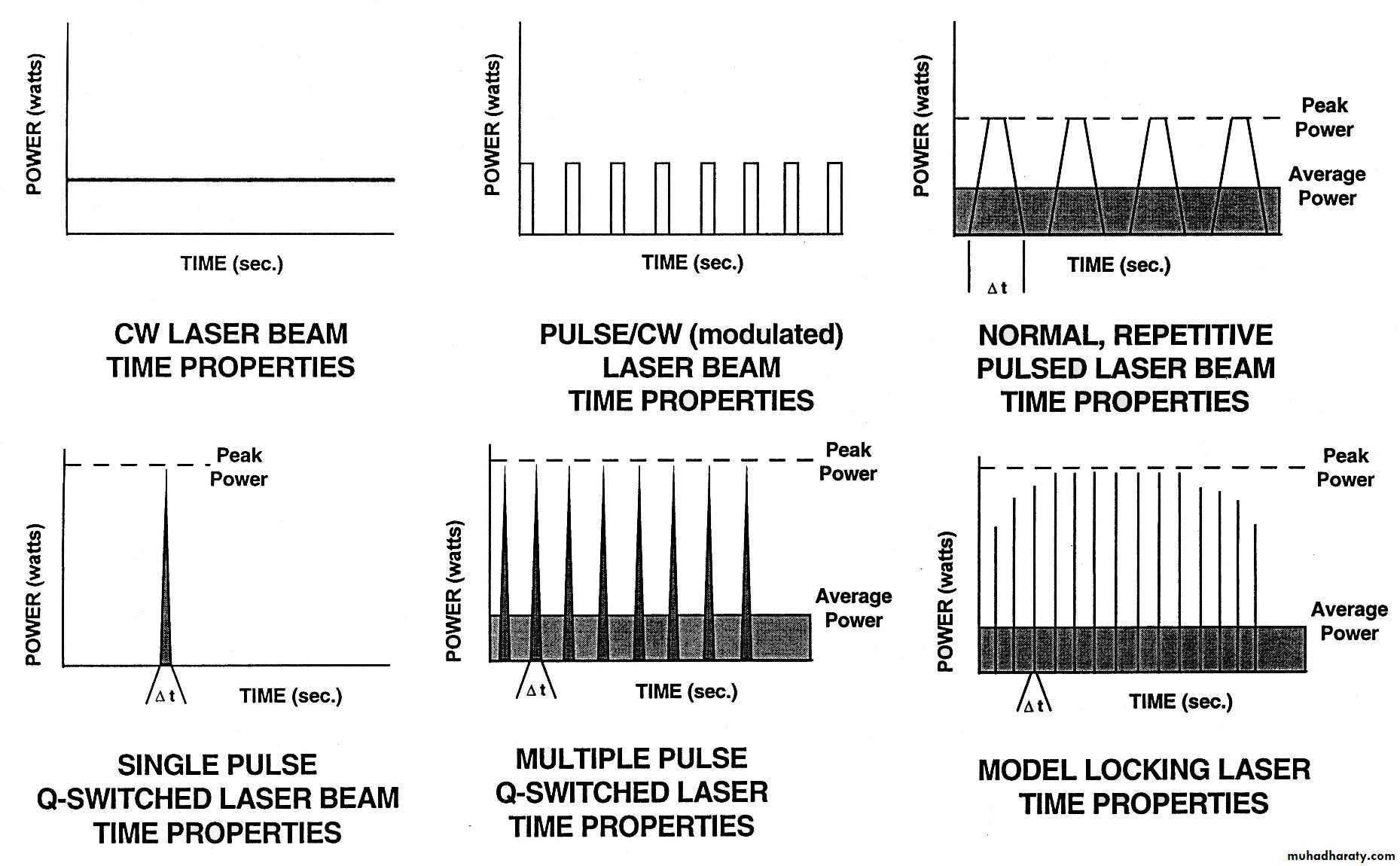

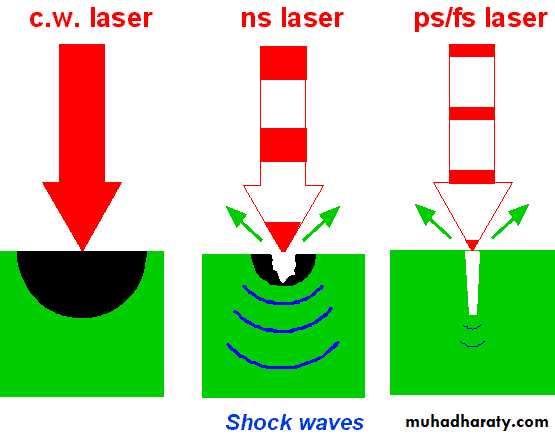

Continuous vs. Pulsed Lasers

Thinner pulses give higher peaks for same average Power.

Δτ=ms,μs

λ=IR
λ=VIS,UV.
Δτ=ps,fs

Diagnosis Of Dental Caries

Reflectance diffused reflection disturbs the diagnosis

Earliest caries detection, traditionally by use of mirror and light, as well as bitewing radiographs, can now be aided by new innovations in dental magnification and imaging, laser fluorescence and quantitative light-induced fluorescence.
Fluorescence of teeth started at 1911 by Stabll using the UV. light

Source

350nm, 410nm and 530nm

Fluorescence

427

480

580
Higher intensity in caries region

blue light excitation

400nm
Visible



High fluorescence in sound tooth structure the demineralized region appear dark
Amount of mineral loss are correlated strongly to loss of fluorescence

Red light excitation

655nm
700nm-800nm
Healthy tooth structure shows
little or no fluorescence,
red fluorescence is proportional to
severity of tooth decay

Laser in Conservative Dentistry

CARBONDIOXIDE LASER
- WAVELENGTH: 10.6um
DENTIN DESENSITIZATION
ARGON LASERS
- WAVELENGTH: 488,514.5um
- USES: CURING , SOFT TISSUE DESENSITIZATION
.Nd:YAG [NEODYMIUM:YTTRIUM-ALLUMINIUM
GARNET] LASER
- WAVELENGTH: 1.064um
- USES: SOFT TISSUE DESENSITIZATION , ANALGESIA
TOOTH WHITENING , PERIODONTICS,
ENDODONTICS

ERBIUM[Er]:YAG LASER

- WAVELENGTH: 2.94um
- USES: HARD TISSUE

ERBIUM-CHROMIUM[Er-Cr]:YSGG LASER

- WAVELENGTH: 2.79um
- USES: HARD TISSUE

DIODE

- WAVELENGTH: 800-830nm and 940, 980nm
- USES:SOFT TISSUE , PERIODONTICS

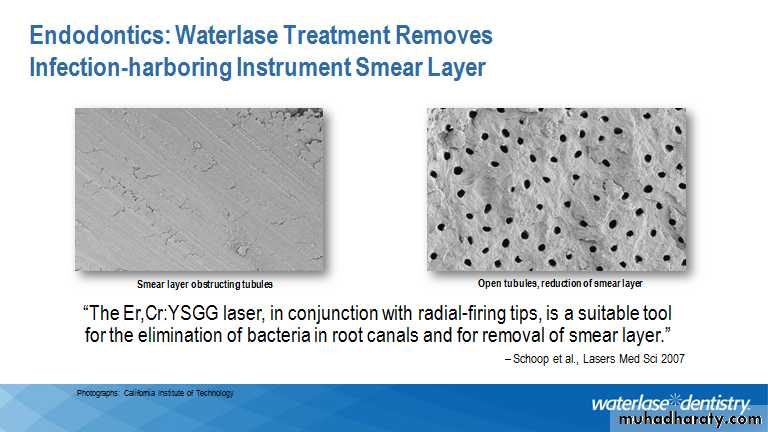

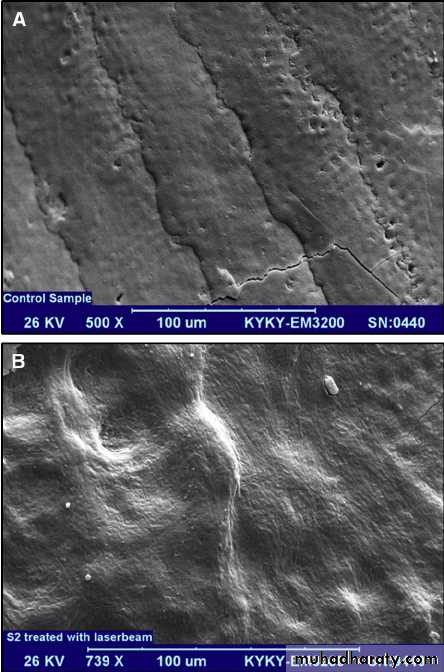

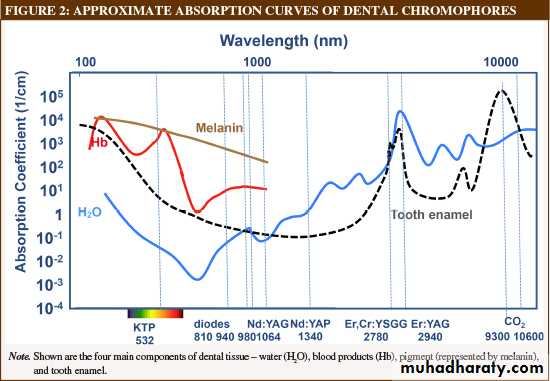

Effect on carious lesions

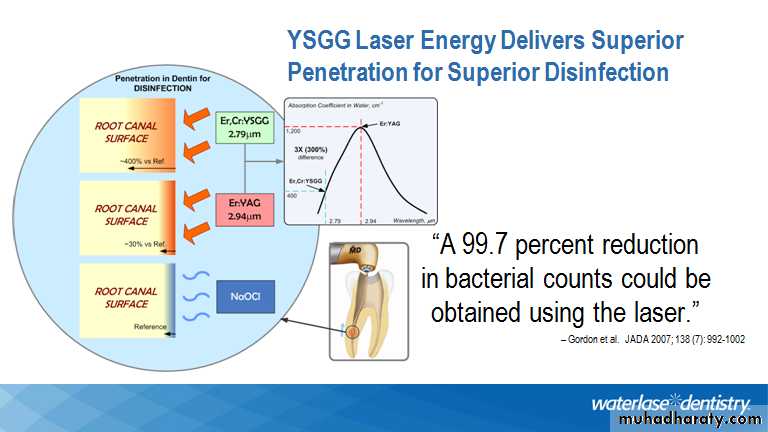

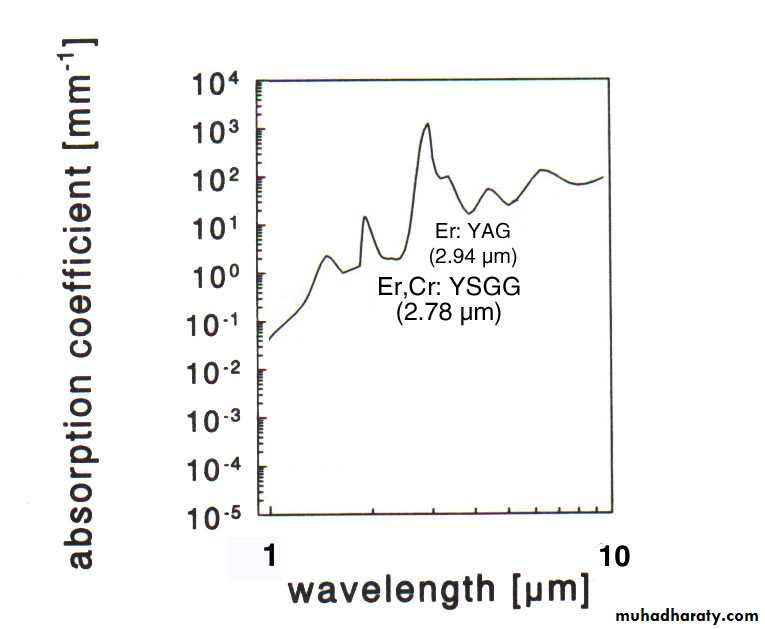

Absorption in Water

Reference source: Optical-Thermal Response of Laser Irradiated Tissue by Ashley J. Welch et al., 1996
300 %
Difference
• Wavelength


Laser Parameters
x 1,000,000
Soft tissue coagulation is much better with Er:Cr:YSGG vs. Er:YAG (less bleeding)
Efficient excitation of bigger volume of water with Er:Cr:YSGG vs. Er:YAG

• Wavelength

ADVANTAGES OF LASERS

(1).Minimal damage to surrounding tissues.

(2).Haemostatic effect by sealing blood vessels.

(3).Reduction of postoperative inflammation &
edema.

(4).Little postoperative scarring.

(5).Reduction in postoperative pain sensation

since nerve endings are blocked.

(6).Dressing & suturing is not required for

wound closer.

(7).Operating time is reduced.

(8).Sterilization of wound due to reduction in
in amount of microorg. exposed to laser
irradiation.

(10).Excellent wound healing.

(11).Laser exposure to tooth enamel causes
reduction in caries activity.

DISADVANTAGES OF LASERS

(1).Laser beam could injure the patient or operator
By direct beam or reflected light, causing retinal
burns.

(2).It available only at big hospital & treatment is

very expensive.

(3).Specially trained person is needed.

Maintenance needed frequently and it is expensive
