1-Aneurysmal bone  cyst

Bone  tumor

2



Surgery (orthopedic)

Dr.  Yakdhan Alsalem                                                     3\1\2016













It mainly affect  young adult, and  it locate  in: The  long  bone  metaphysis .





The  patient mainly complain from  pain  and  in  large  cyst  visible  or  palpable mass  may  be

detected.





X-ray

well  defined radiolucent cyst  , trabiculated and  eccentrically located , usually in

the  metaphysis , the  lesion  is

expandable (ballooning) .






Treatment :

by  curettage and  bone  graft






background image

r



2-Giant  cell  tum







Comparison between simple bone  cyst  and  aneurysmal bone  cyst



















It is a lesion  of uncertain origin  ; it appear in  mature bone  , most  commonly in the

distal  femur  , proximal tibia  , proximal humerus and  distal  radius  .





It characteristically extends up  to the  subarticular bone  plate  .






The  patient is usually young adult (20-40) years  old   who  complains of pain  at  the

end  of the  long  bone  .






On examination

:  there  is palpable mass  .












2






background image

X-ray

: radiolucent area  located eccentrically at  the  end  of the  long  bone  , the

cortex  is thin  and  ballooned , the  lesion  is trabiculated and  it is

characteristically  extend to  the  subchondral bone  .





Treatment

: well  confined , slow  growing  lesion  can  be treated by  curettage and

bone  graft  , bigger  lesion  treated by  excision  and  bone  graft  some  time  with

prosthetic replacement .





If the  tumor is rapidly enlarged and  aggressive , amputation is indicated



































3






background image



3-Malignant  bone  tumors







Osteogenic sarcoma







It is highly malignant bone  forming tumor ,






It arise  within the  bone  and  spread rapidly out  ward towards the  periosteium and

the  soft  tissue  .





It affect  mainly the  children  , adolescent and  old  age  group .






It affect  any  bone  but  mainly the  metaphysis of the  long  bones  especially around

the  knee  joint  and  proximal end  of humerus .






Clinically :






1-

pain  is the  first  symptom ,





2-

gradually increase in  severity .





3-  some  time  the  patient presented with  lump or  pathological

fracture .






On examination  :






in  early  case  local  tenderness , in  late  cases  palpable mass  can  be felt  and  swelling

can  be seen  .







4






background image

Investigation








Blood  invest. :  ESR increase   serum alkaline phosphatase   increase .






Radiological investigation  :






1-

plain x-ray

:hazy  osteolytic area  which  is non  homogenous and  alternate

with osteoblastic areas  , the  tumor destruct the  cortex  and  extend to  the

adjacent soft  tissue  ; when this  happened streaks of new  bone  appear radiating

out  ward from  the  cortex  (sun  burst)  appearance





periosteal reaction is present in  form  called  (Codman's triangle)   ; these  two

findings are  typical  for  osteogenic sarcoma





2-  Radioisotope scan .






3-  C.T.






4-  MRI.






5-  Chest  x-ray  to detect  metastasis .






6-  Other  invest.   Incisional biopsy .


















5






background image

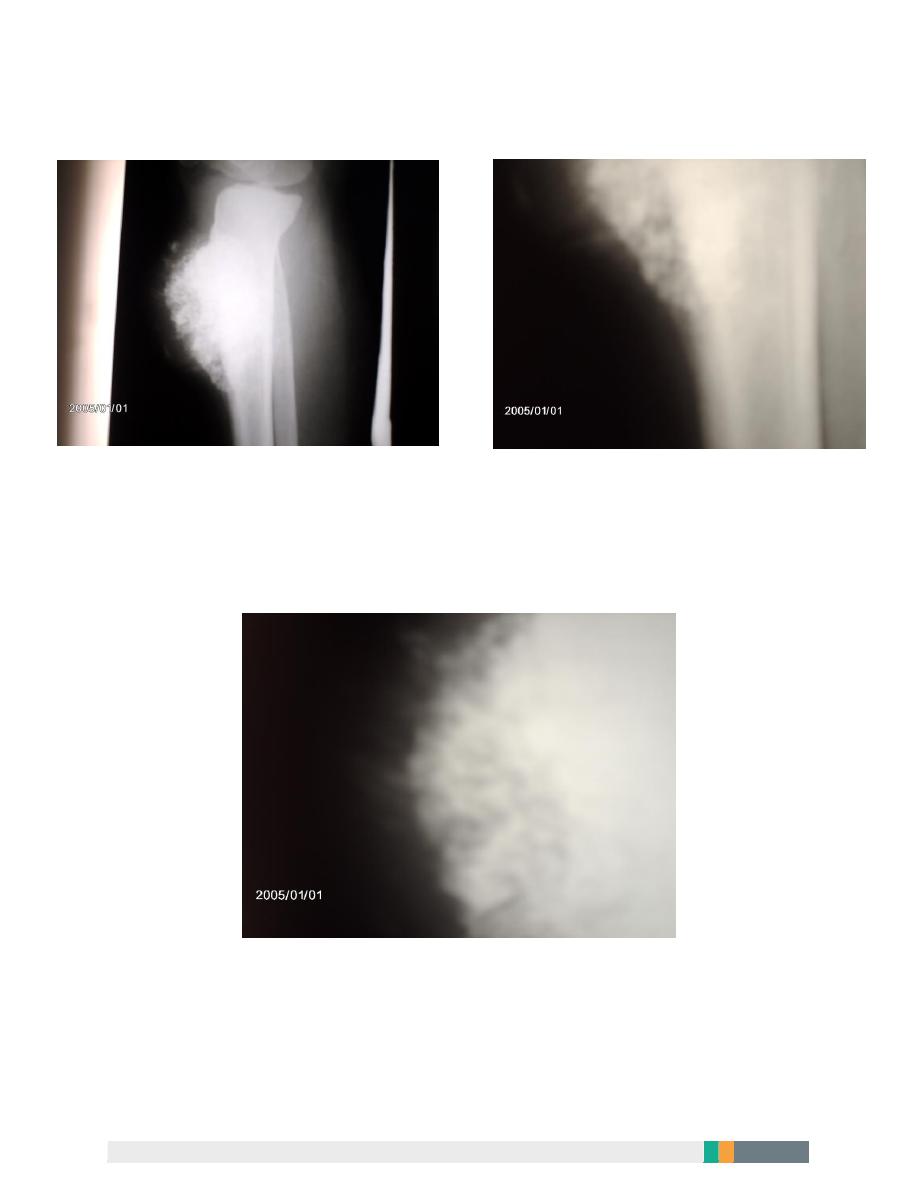

Osteogenic sarcoma (codman tiangle)

















Osteogenic sarcoma (sun-burst) appearance
























6






background image

Treatment



4-Ewing  sarcoma






Since  this  tumor is highly malignant and  aggressive ;






radical  surgery  combined with  chemotherapy and  radiotherapy  is  indicated






1-  Radical  surgery:  it mean  amputation through or  above  the  joint  proximal to

the  lesion  and  proximal to  the  origin  of any  affected  muscle  .






2-  Chemotherapy

methoterexate is used   pre-operative and  post-operative .






Prognosis  : improved in the  last  few  years  due  to  improvement in  the  invest.  ,

diagnosis and  treatment .











It arise  from  the  bone  marrow , the  age  affected  are  usually children and

adolescent (10-20)years  old  , it affect  the  tubular bone  , it is highly malignant

tumor and  carry  bad  prognosis .






Clinically :






pain (which  is usually throbbing in nature) , swelling (tender)  , generalized illness

and  pyrexia .





ESR is increase . C.T, MRI ,  Bone  scan  .All are  helpful .










7






background image



x-ray  : destructive osteolytic diaphyseal lesion  , new  bone  formation in  fusiform

layering around the  lesion  so-called onion-peel appearance  .






Differential diagnosis






1- bone  infection .






2-osteoid osteioma






Treatment

: the  prognosis is always poor  , and  surgery alone  do  little  to  improve

it .






The  tumor is very  sensitive to radiotherapy and  chemotherapy but  over  all

survival is not  much  improved











Ewing  sarcoma(periosteal reaction)

















8






background image



5-Metastatic  bone  tumor












Skeleton  is one  of the  commonest site  of the  secondary cancer  .






In patients over  50 years  old  , bone  metastasis are  seen  more  frequently than  all

primary malignant bone  tumors together .





The  commonest source  of secondary tumor in bone  (from  the  commonest to  less

common )are  :





1- ca. breast  .






2- ca. prostate .






3- ca. kidney .






4- ca. lung  .






5- ca. thyroid .






The  commonest site  of secondary bone  tumor are:

Vertebrae , pelvis  ,proximal femur  and  humerus .










9






background image



Metastasis is usually osteolytic but  osteoblastic lesion  seen  in  secondary tumor  of

prostate .






Clinically

:the  presenting symptoms of secondary bone  tumor is usually , pain  or

back  ache  and  pathological fracture.





Investigation

:x-ray  , bone  scan  , biopsy .






In children secondary bone  tumor is usually from  adrenal neuroblastoma .






Treatment

:by the  time  the  patient develop sec. bone  tumor the  prognosis is

usually hopeless .






in  most  of cases  the  treatment is symptomatic  i.e. to  search  for  primary tumor is

value  less  .











It is important to  get  the  patient live  the  remaining of his  life comfortably by  :






1- controlling the  pain  by  analgesics or   narcotics .






2- radiotherapy to decrease the  pain  and  metastatic activity  .






3- fixation  of the  pathological fracture .






4- sever  pain  some  time  need  nerve  or  spinal tract  ablation                              A.L.Y







10
