مواضيع المحاضرة: Mammalian
background image

Lab 10

Mammals


background image

Kingdom: Animalia
Phylum: Chordata
Subphylum: Vertebrata
Super class: Tetrapoda
Class: Mammalia
Sub class: Eutheria

Order: Lagmorpha

Scientific name: Lepus capensis arabicus

Common name: Arabic rabbit
II. Order: Primates

Scientific name: Homo sapiens

Common name: Human


background image

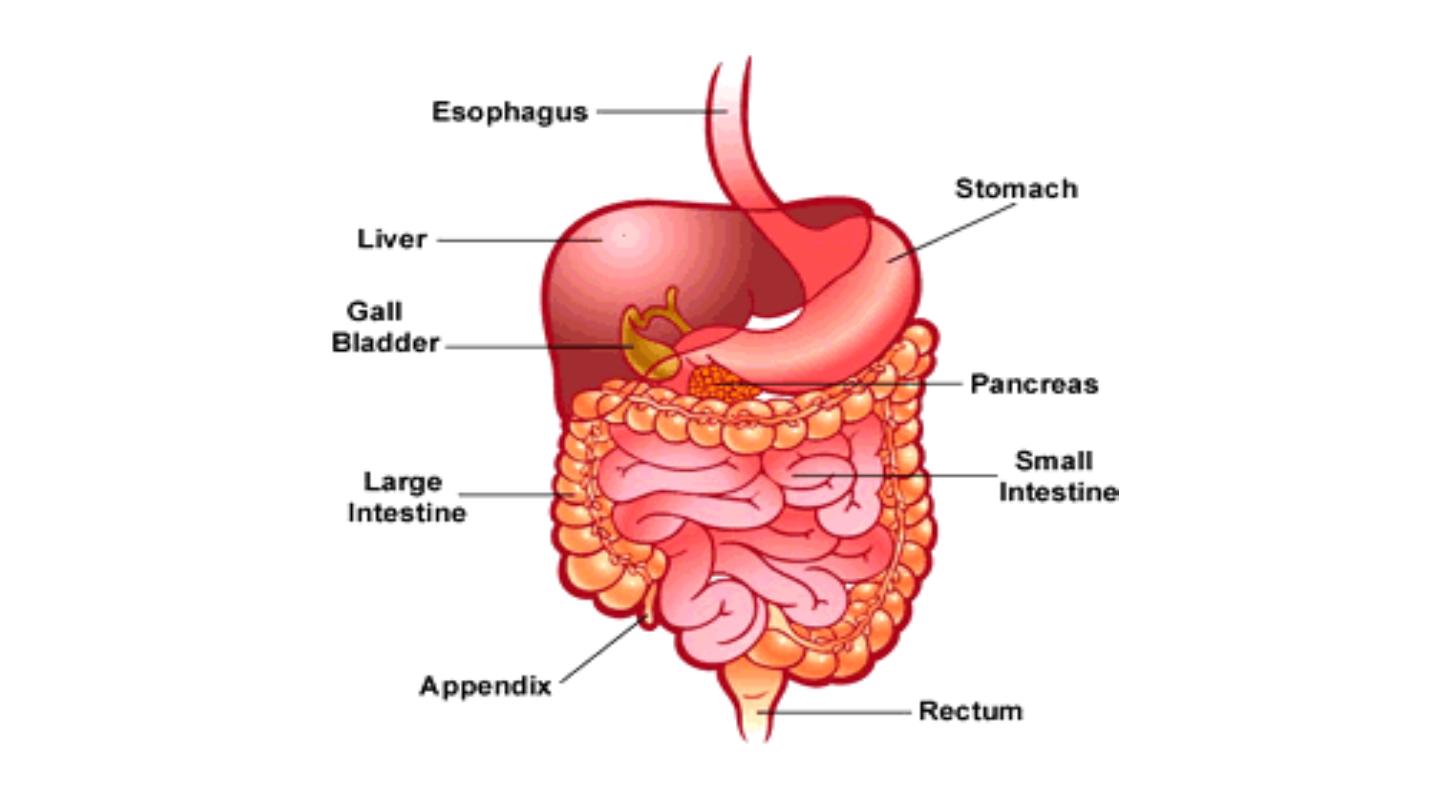

Digestive System

• The oral cavity begins at the mouth & ends at the

pharynx.

• Pharynx: an epiglottis is positioned over the glottis so

that, when a mammal swallows, the epiglottis blocks the
glottis (which prevents food or liquids from entering the
trachea).

• Esophagus: A distensible

muscular tube

connecting the

pharynx & the stomach.

• Stomach: A muscular chamber at end of esophagus.
• The intestine is located between the stomach & the anus.


background image

Small intestine

long & coiled and differentiated into

duodenumjejunum, & ileum

• The large intestine (colon and rectum) is often relatively long

(but not as long as the small intestine). A caecum is often

present at the junction of the small & large intestines.

• Liver gall bladder: liver produces bile which is stored in the

gall bladder.

• Pancreas: secretes pancreatic juice  into the intestine

The intestine opens directly to the exterior via anus.


background image

background image

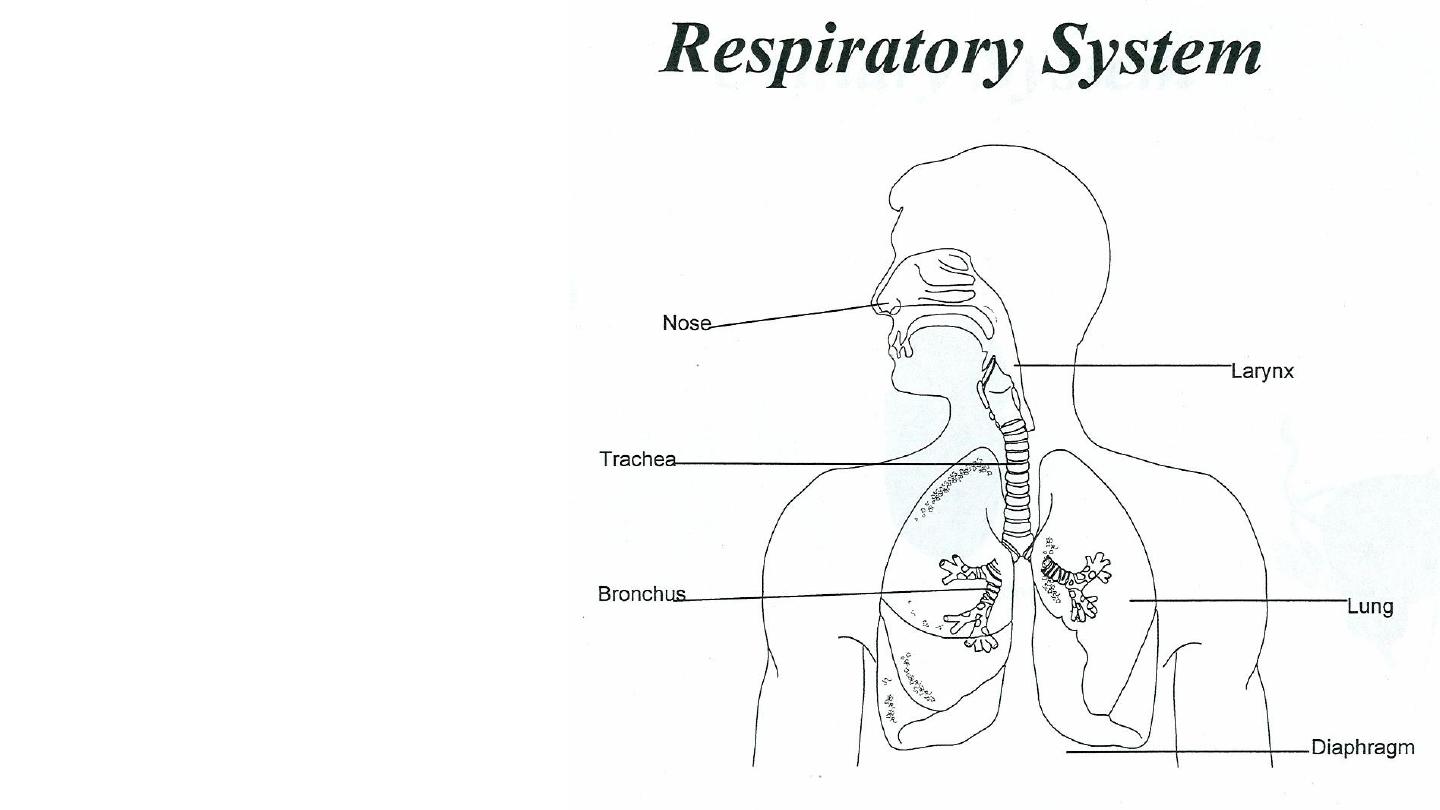

• Nostrils
• Nasopharynx
• Glottis
• Trachea
• Left & right bronchi
• Bronchioles
• Alveoli


background image

Urinary System

• In humans it includes

two

kidneys

, two

ureters

, the urinary

bladder

and the

urethra

.


background image

Reproductive System

Female Reproductive System

• Ovaries: The ovaries are small, oval-shaped glands that are located on

either side of the uterus. The ovaries produce eggs and hormones.

• Fallopian tubes (Oviducts): These are narrow tubes that are attached

to the upper part of the uterus and travel the ova (egg cells) from the

ovaries to the uterus.

• Uterus: The uterus is a hollow, pear-shaped organ that is the home to

developing fetus

. The uterus is divided into two parts: the cervix

which is the lower part that opens into the vagina, and the corpus

(the main body of the uterus). The corpus can easily expand to hold a

developing baby.

• Vagina: The vagina is a canal that joins the cervix (the lower part of

uterus) to the outside of the body. It also is known as the birth canal.


background image

Male Reproductive System

• Testes: The testes are oval organs that lie in the scrotum, secured at

either end by a structure called the spermatic cord.

• Epididymis: The epididymis is a long, coiled tube that rests on the

backside of each testis. It functions in the transport and storage of

the sperm cells that are produced in the testes.

• Vas deferens: The vas deferens is a long, muscular tube that travels

from the epididymis into the pelvic cavity, behind the bladder.

• Seminal vesicles: The seminal vesicles are sac-like pouches that

attach to the vas deferens near the base of the bladder.

• Prostate gland: The prostate gland is a walnut-sized structure that is

located below the urinary bladder in front of the rectum.

• Bulbourethral glands: The bulbourethral glands, or Cowper’s glands,

are pea-sized structures located on the sides of the urethra below the

prostate gland.


background image

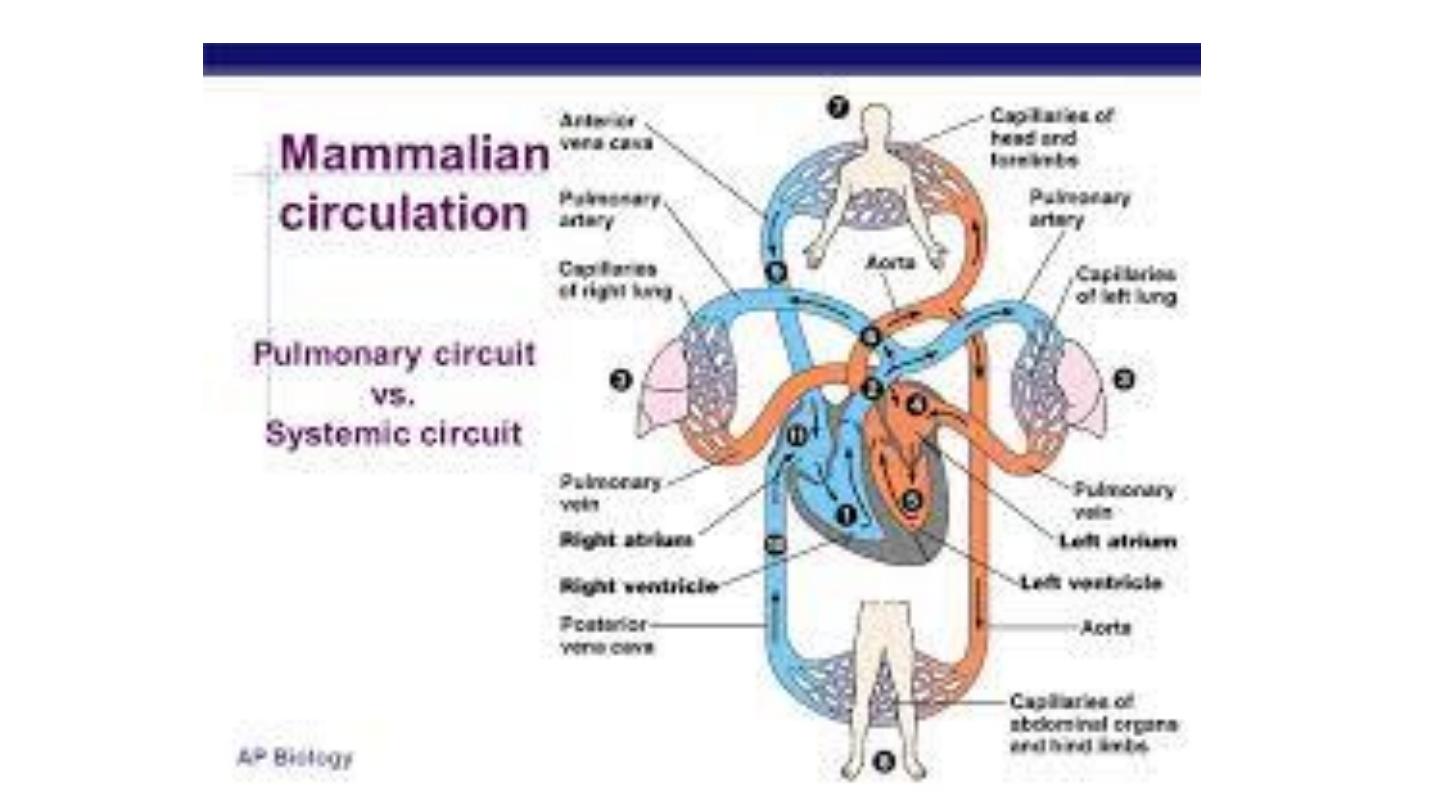

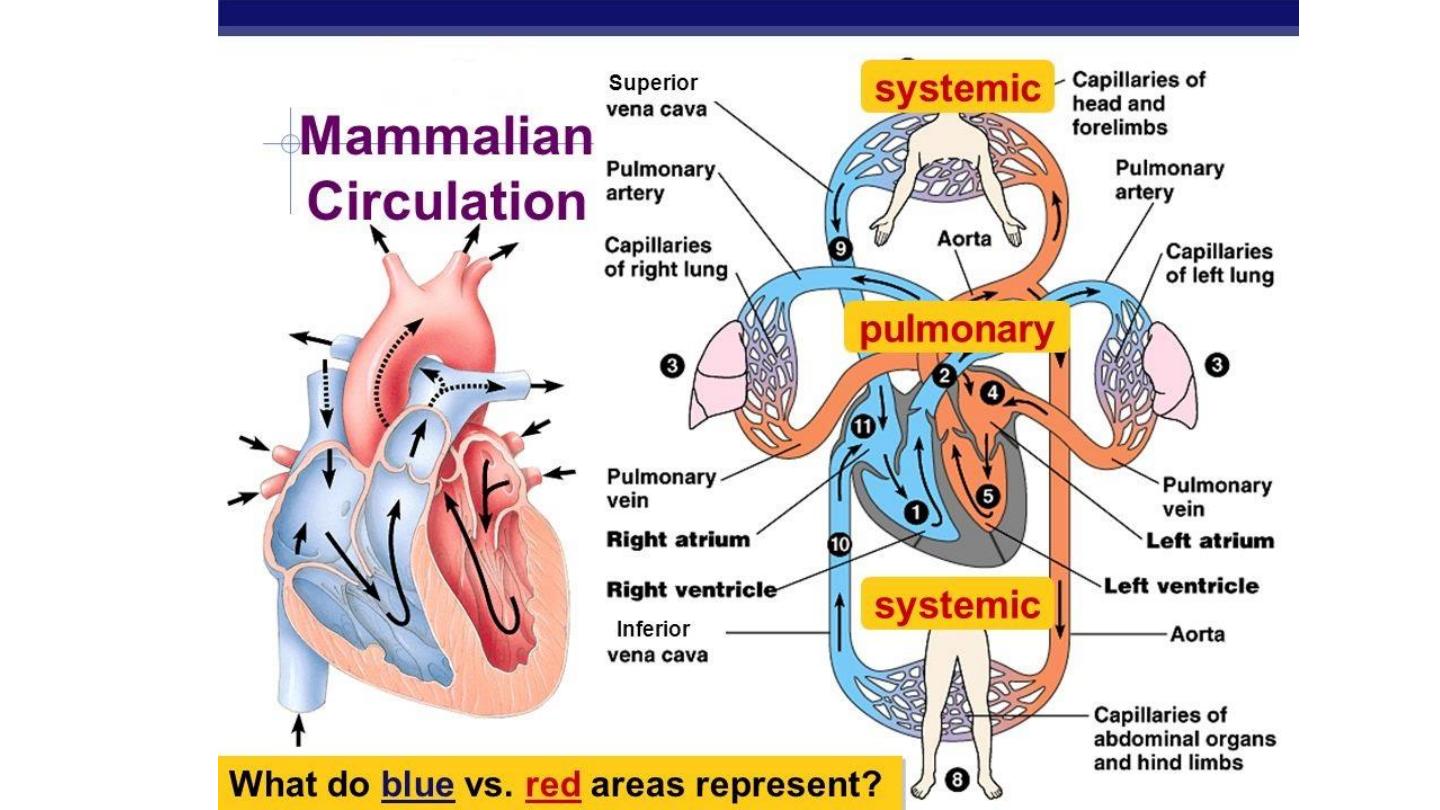

Circulatory System

Heart

• There are four chambers:

left atrium

left ventricle

right atrium

and

right ventricle

.

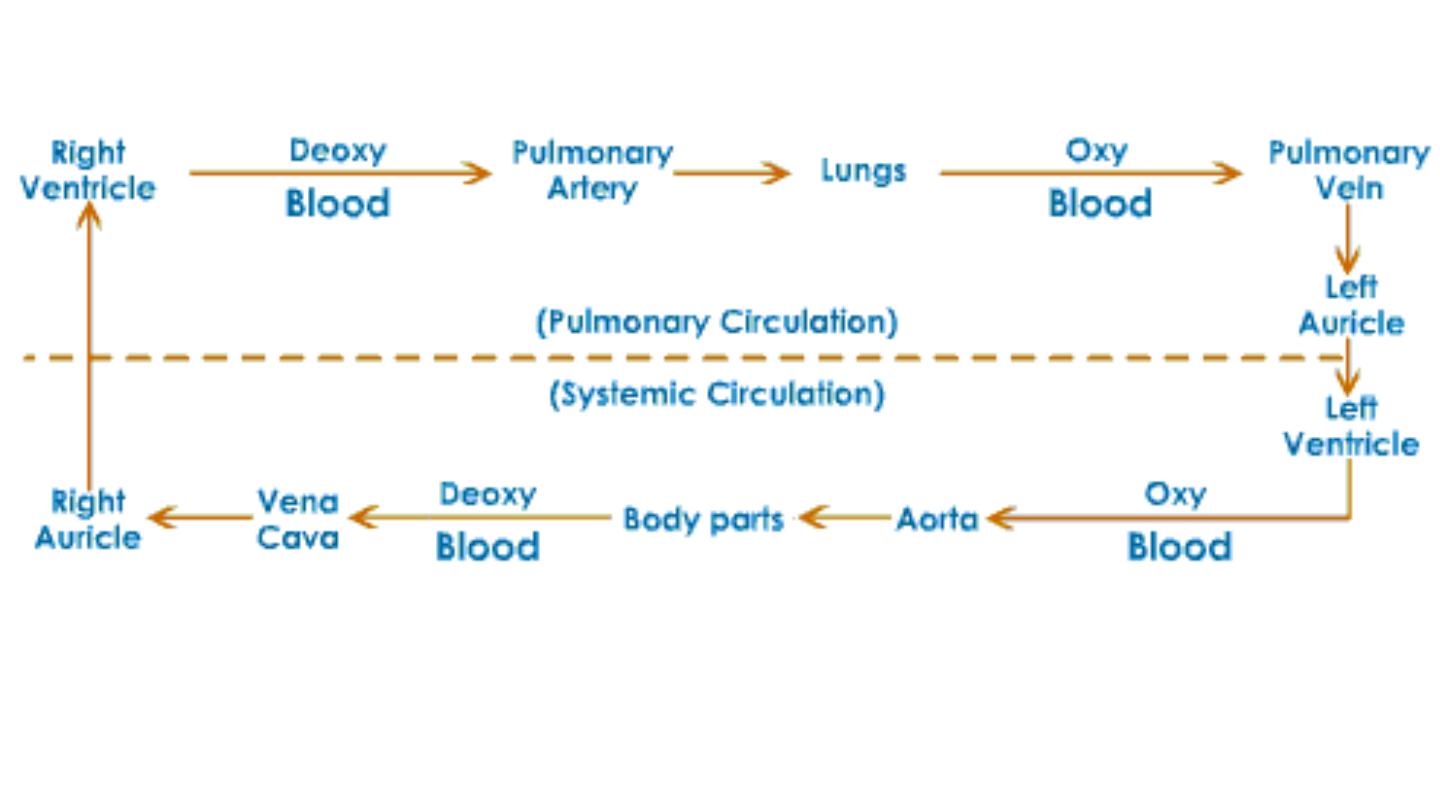

• The blood that is returned to the right atrium is

deoxygenated and passed into the right ventricle to be
pumped through the pulmonary artery to the lungs
for re-oxygenation and removal of carbon dioxide.

• The left atrium receives oxygenated blood from the

lungs which is passed into the strong left ventricle to
be pumped through the aorta to the different organs
of the body.


background image

background image

background image
