امنية البرامج

Software Security

Lesson Introduction
• Software vulnerabilities and how attackers exploit them.
• Defenses against attacks that try to exploit buffer overflows.

• Secure programming: Code “defensively”, expecting it to be exploited. Do not trust the “inputs” that come from users of the software system.

• Example: Buffer overflow - a common and persistent vulnerability

• Stack buffer overflows
• Stacks are used...
• in function/procedure calls
• for allocation of memory for...
• local variables
• parameters
• control information (return address)
Software Vulnerabilities &
How They Get Exploited


A Vulnerable Password Checking Program
• #include <stdio.h>
• #include <strings.h>
• int main(int argc, char *argv[]) {
• int allow_login = 0;
• char pwdstr[12];
• char targetpwd[12] = "MyPwd123";
• gets(pwdstr);
• if (strncmp(pwdstr,targetpwd, 12) == 0)
• allow_login = 1;
• if (allow_login == 0)
• printf("Login request rejected");
• else
• printf("Login request allowed");
• }

Stack Access Quiz

• int main(int argc, char *argv[]) {
• int allow_login = 0;
• char pwdstr[12];
• char targetpwd[12] = "MyPwd123";
• gets(pwdstr);
• if (strncmp(pwdstr,targetpwd, 12) == 0)
• allow_login = 1;
• if (allow_login == 0)
• printf("Login request rejected");
• else
• printf("Login request allowed");
• }


Check the lines of code, when executed, accesses addresses in the stack frame for main():

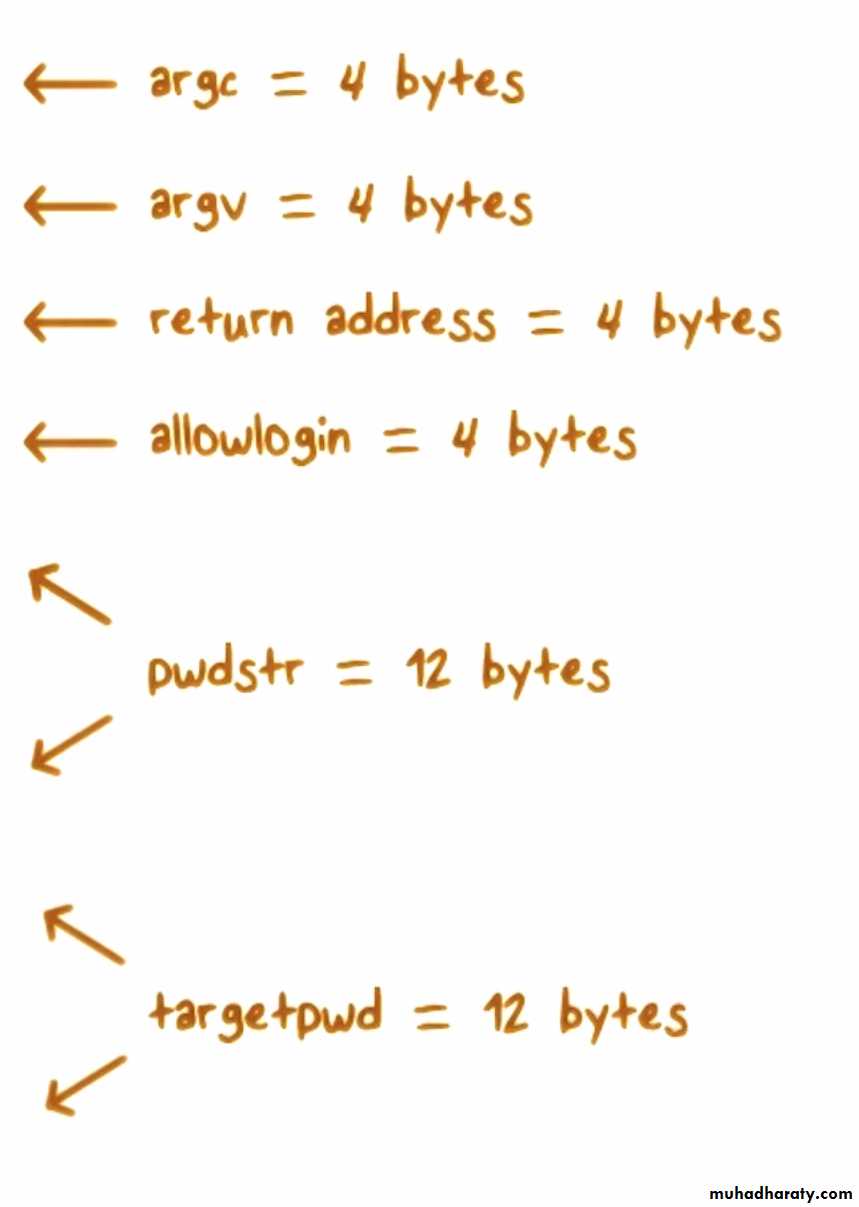

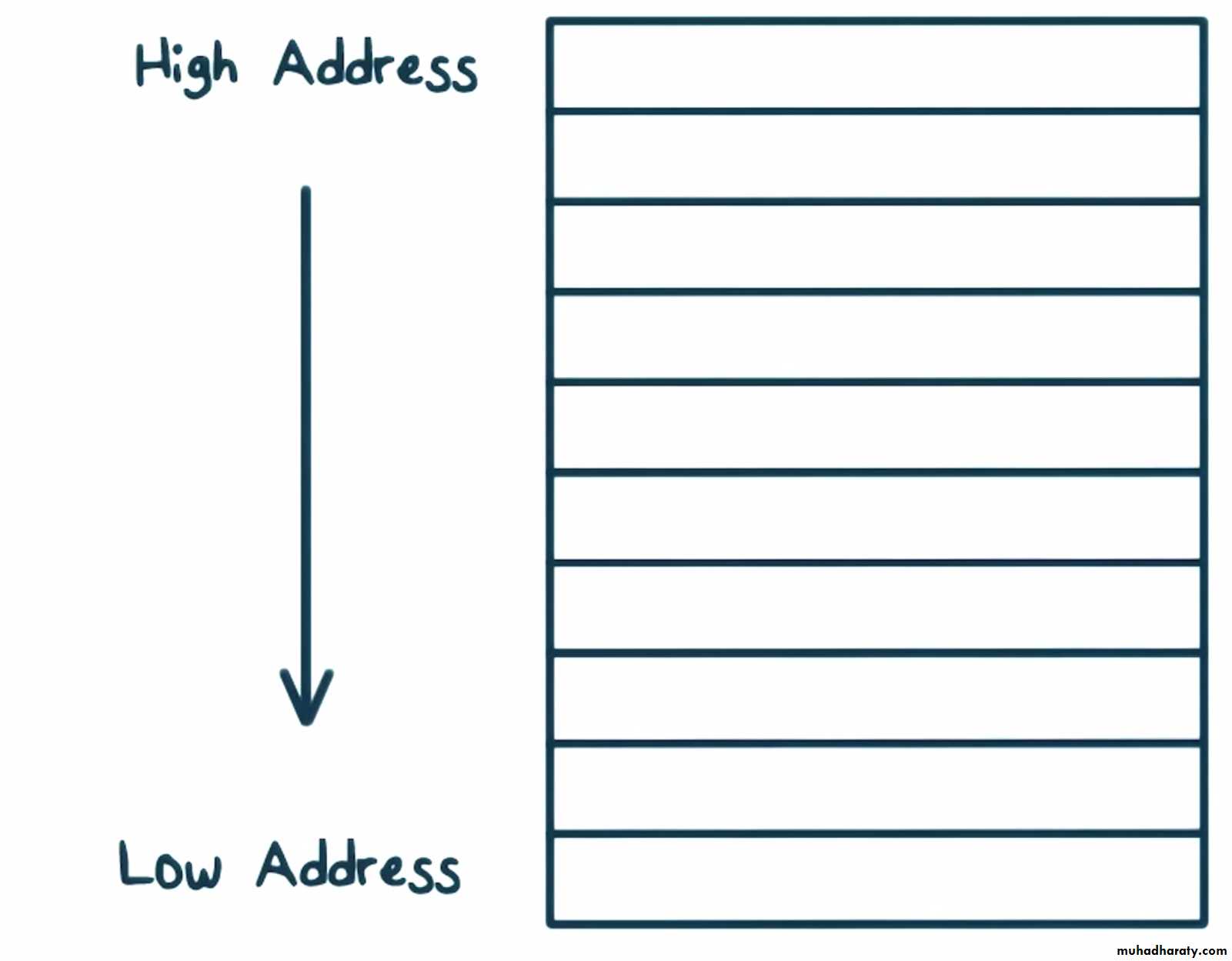

Understanding the Stack

High Address
Low Address

• #include <stdio.h>

• #include <strings.h>
• int main(int argc, char *argv[]) {
• int allow_login = 0;
• char pwdstr[12];
• char targetpwd[12] = "MyPwd123";
• gets(pwdstr);
• if (strncmp(pwdstr,targetpwd, 12) == 0)
• allow_login = 1;
• if (allow_login == 0)
• printf("Login request rejected");
• else
• printf("Login request allowed");
• }
Attacker Bad Input Quiz


What type of password string could defeat the
password check code? (Check all that apply)

• Any password of length greater than 12 bytes that ends in ‘123’

• Any password of length greater than 16 bytes that begins with ‘MyPwd123’
• Any password of length greater than 8 bytes

• We type a correct password (MyPwd123) of less than 12 characters:

• The login request is allowed.
• Now let us type “BadPassWd” when we are asked to provide the password:
• The login request is rejected.
Attacker Code Execution






Attacker Code Execution

If we type a really long string, we will overflow into the return address space.

Attacker Code Execution





We can carefully overflow the return address so it contains the value of an address where we put some code we want executed.

Attacker Code Execution

Which of these vulnerabilities applies to

the code:

• The target password was too short, this made it easy to overflow the buffer.

• The code did not check the input and reject password strings longer than 12 bytes.
• The code did not add extra, unused variables. If this is done then when the user inputs a long password, it won’t overflow into the return address.

Buffer Overflow Quiz

ShellCode

Whose privileges are used when
• attacker code is executed?
• The host program’s
• System service or OS root privileges
• LEAST Privilege is IMPORTANT
Shell Code: creates a shell which allows it to execute any code the attacker wants.

National Vulnerability Database (NVD) Quiz

• How many CVE (Common Vulnerability and Exposure) vulnerabilities do you think NVD will have?
• [1] Close to 500, [2] A few thousand, [3] Close to 70000

• If you search the NVD, how many bufferoverflow vulnerabilities will be reported from the lastthree months?
• [1] less than 10, [2] Several hundred, [3] Close to one hundred
• How many buffer overflow vulnerabilities in the last3 years?
• [1] Over a thousand, [2] fifty thousand, [3] five hundred

Variations of Buffer Overflow

• Return-to-libc: the return address is overwritten to point to a standard library function.
• Heap Overflows: data stored in the heap is overwritten. Data can be tables of function pointers.
• OpenSSL Heartbleed Vulnerability: read much more of the buffer than just the data, which may include sensitive data.

Heap Overflow

Buffer overflows that occur in the heap data area.
Typical heap manipulation functions: malloc()/free()


Lower Address
Higher Address

Heap

Stack

char* p = malloc (256);

memset (p, ‘A’, 1024);

Heap Overflow – Example

Overwrite the function pointer in the adjacent buffer

Higher Address

Chunk 2
Chunk 1

Function Pointer

Before heap overflow

Function Pointer

After heap overflow


Defense Against Buffer Overflow Attacks
• Programming language choice is crucial.
• The language...
• Should be strongly typed
• Should do automatic bounds checks
• Should do automatic memorymanagement
• Examples of Safe languages: Java, C++, Python
•

• Why are some languages safe?

• Buffer overflow becomes impossible due to runtime system checks
• The drawback of secure languages
• Possible performancedegradation
Defense Against Buffer Overflow Attacks







• When Using Unsafe Languages:
• Check input (ALL input is EVIL)
• Use safer functions that do bounds checking
• Use automatic tools to analyze code for potential unsafe functions.
Defense Against Buffer Overflow Attacks

• Analysis Tools…

• Can flag potentially unsafe functions/constructs
• Can help mitigate security lapses, but it is really hard to eliminate all buffer overflows.
Defense Against Buffer Overflow Attacks
Examples of analysis tools can be found at:
https://www.owasp.org/index.php/Source_Code_Analysis_Tools

• Stack Canaries:

• When a return address is stored in a stack frame, a random canary value is written just before it. Any attempt to rewrite the address using buffer overflow will result in the canary being rewritten and an overflow will be detected.
Thwarting Buffer Overflow Attacks

Countermeasure – Stack Protection

password
userid
passwordok
Return
address

Stack

growth
direction
…
Overwriting return
address will always
overwrite the canary value

Before using the return address,

check if the canary value on stack is the
same as value stored in a register


Injected
code
Canary

Unbounded

write
overwrites
contents
of stack

Canary for tamper detection

No code execution on stack

• Address Space Layout Randomization (ASLR) randomizes stack, heap, libc, etc. This makes it harder for the attacker to find important locations (e.g., libc function address).
• Use a non-executable stack coupled with ASLR. This solution uses OS/hardware support.
Thwarting Buffer Overflow Attacks

• Do stack canaries prevent return-to-libc buffer overflow attacks?

• Does ASLR protect against read-only buffer overflow attacks?
• Can the OpenSSL heartbleed vulnerability be avoided with non-executable stack?
Buffer Overflow Attacks Quiz
Yes No
Yes No
Yes No

Software Security

Lesson Summary
• Understand how software bug/ vulnerabilities can be exploited
• Several defenses possible against attacks
• Buffer overflows remain a problem
• Web security: Important for web
• Secure coding -- check all input!
